Same model may have multiple batches, images only for reference.

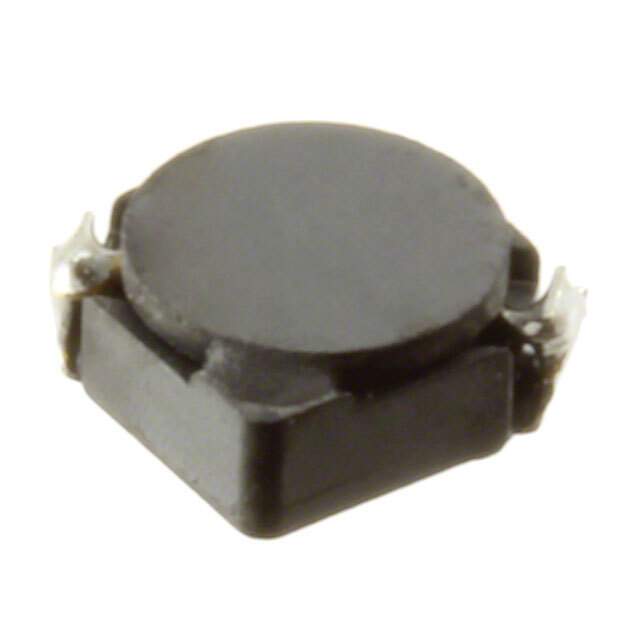

CDRH3D16/LDNP-3R3NC Real Image
Same model may have multiple batches, images only for reference.

CDRH3D16/LDNP-3R3NC

Part No CDRH3D16/LDNP-3R3NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description Inductor Power Shielded Drum Core 3.3uH 30% 100KHz Ferrite 2A 0.066Ohm DCR 1515 T/R / FIXED IND 3.3UH 2A 66 MOHM SMD
Datasheet
CDRH3D16/LDNP-3R3NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±30%
Current Rating 2A
Current - Saturation 800mA
DC Resistance (DCR) 66 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 107360-CDRH3D16/LDNP-3R3NC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name CDRH3D16/LD
Introduction Date May 20, 2010
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CDRH3D16/LDNP-3R3NC CAD Model

Description

Product Overview

The CDRH3D16/LDNP-3R3NC is a versatile power inductor optimized for efficacy in a range of high-performance electronic applications. Its design emphasizes reliability and energy efficiency in a compact package.

Features and Benefits

  • Versatile Performance: Versatile enough for a broad range of applications.
  • Energy-Efficient: Maximizes power delivery efficiency with minimal losses.
  • Compact and Durable: Designed for tight spaces and ensuring long-term durability.

Applications

  • Battery-operated devices
  • Wearable electronics
  • Automotive systems

The CDRH3D16/LDNP-3R3NC is an exceptional choice for demanding electronic applications, balancing size and performance.
