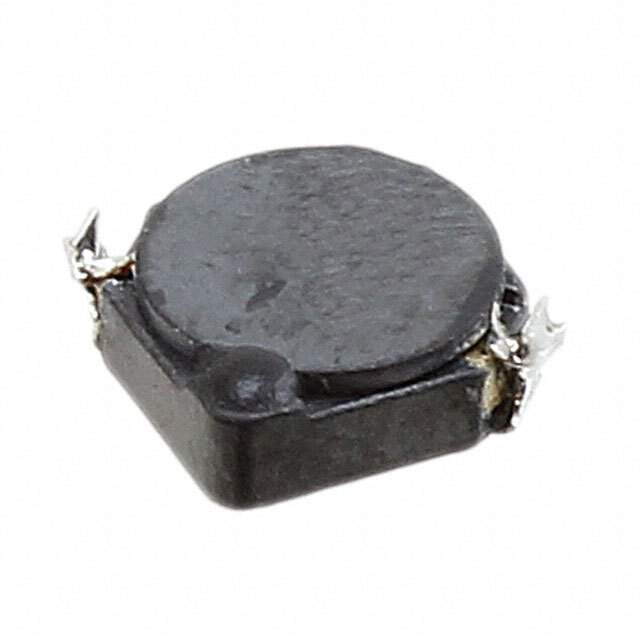

CDRH4D16NP-4R7NC Real Image
Same model may have multiple batches, images only for reference.

CDRH4D16NP-4R7NC

Part No CDRH4D16NP-4R7NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.65A 75 MOHM
Datasheet
CDRH4D16NP-4R7NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Inductance 4.7μH
Tolerance ±25%
Current Rating 1.65A
Current - Saturation 1.4A
DC Resistance (DCR) 75 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 013077-CDRH4D16NP-4R7NC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CDRH4D16NP-4R7NC CAD Model

Description

CDRH4D16NP-4R7NC

The CDRH4D16NP-4R7NC is engineered for versatility and high performance, making it a valuable addition to any modern electronic application requiring precision.

Features:

  • 4.7μH inductance offering reliable performance.
  • Designed for robustness and longevity.
  • Surface mount capabilities for seamless integration.

Benefits:

  • Aids in achieving higher efficiency in power-sensitive applications.
  • Dampens noise effectively reducing distortion.
  • Provides stable inductance across different conditions.

Applications:

  • Battery-powered devices
  • High-frequency switching regulators
  • RF applications
