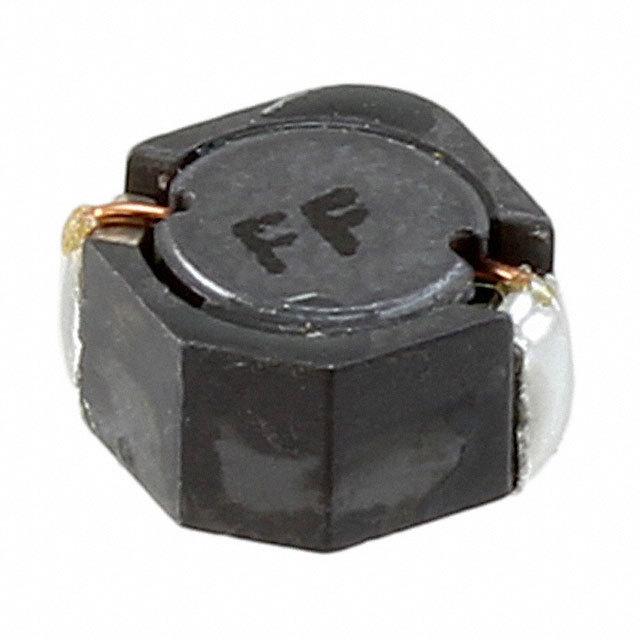

CDRH4D28CLDNP-2R2PC Sumida America Components Inc.
Same model may have multiple batches, images only for reference.

CDRH4D28CLDNP-2R2PC

Part No CDRH4D28CLDNP-2R2PC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 3.6A 23.8 MOHM
Datasheet
CDRH4D28CLDNP-2R2PC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±25%
Current Rating 3.6A
Current - Saturation 2A
DC Resistance (DCR) 23.8 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 119827-CDRH4D28CLDNP-2R2PC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH4D28CLDNP-2R2PC CAD Model

Description

CDRH4D28CLDNP-2R2PC High-Frequency Inductor

The CDRH4D28CLDNP-2R2PC is specifically crafted for high-frequency applications, boasting low inductance for minimal signal distortion. Its compact form factor makes it suitable for modern miniaturized circuits.

  • Applications and Projects:
    • High-frequency filters
    • RF transceivers
    • LED drivers
  • Features and Benefits:
    • Low inductance of 2.2μH
    • Minimal AC resistance
    • Optimized for high-frequency use
  • Additional Details:
    • Compact size: 4.7mm x 4.7mm x 2.8mm
    • High quality factor
