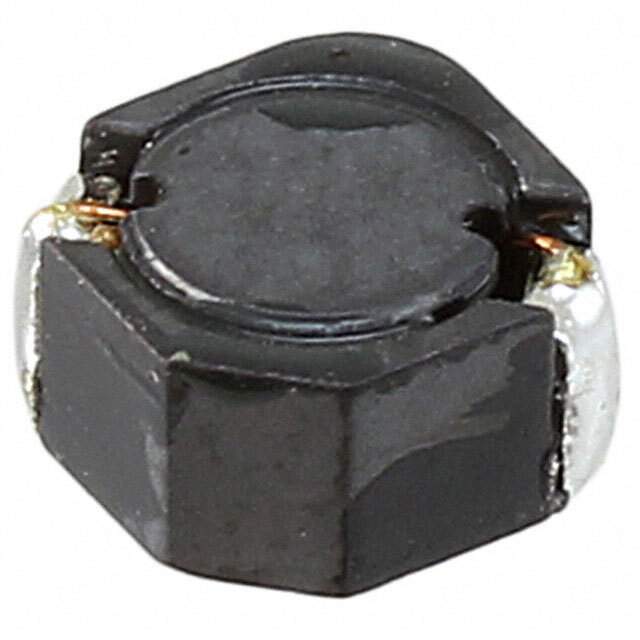

CDRH4D28CNP-100PC Real Image
Same model may have multiple batches, images only for reference.

CDRH4D28CNP-100PC

Part No CDRH4D28CNP-100PC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description SMD Power Inductor
Datasheet
CDRH4D28CNP-100PC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH4D28C
Packaging Reel - TR
Material - Core Ferrite
Inductance 10μH
Tolerance ±25%
Current Rating 1.26A
Shielding Shielded
DC Resistance (DCR) 106 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Win Source Part Number 1160859-CDRH4D28CNP-100PC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Balance
Family Name CDRH4D28C
Introduction Date August 29, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CDRH4D28CNP-100PC CAD Model

Description

The CDRH4D28CNP-100PC is a high-performance shielded power inductor manufactured by Sumida America Components Inc.

  • Material: Ferrite
  • Current Rating: 1.26A
  • Package: Nonstandard
  • Operating Temperature: -40°C to 105°C
  • Inductance: 10μH
  • Tolerance: ±25%
  • Series: CDRH4D28C
  • Packaging: Reel
  • DC Resistance: 106 mOhm Max
  • Dimensions: 0.193" L x 0.193" W (4.90mm x 4.90mm)
