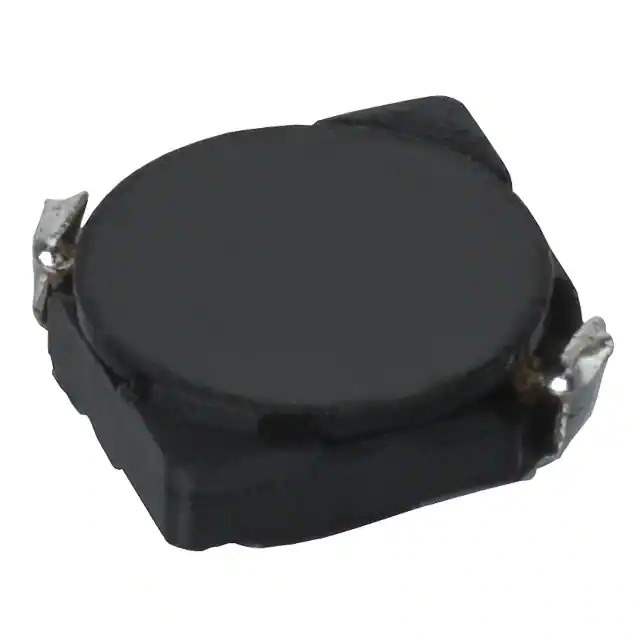

Same model may have multiple batches, images only for reference.

CDRH5D18NP-5R4NC

Name: CDRH5D18NP-5R4NC
Brand: Sumida America Components Inc.
SKU: 578180
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	CDRH5D18NP-5R4NC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 5.4UH 1.6A 76 MOHM SMD
Datasheet	CDRH5D18NP-5R4NC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Sumida America Components Inc.
Series	CDRH5D18
Package	Tape & Reel
Product Status	Active
Inductance	5.4 µH
Tolerance	±30%
Current Rating (Amps)	1.6 A
Shielding	Shielded
DC Resistance (DCR)	76mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max)	0.079" (2.00mm)
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	578180-CDRH5D18NP-5R4NC
Ultra Librarian 3D Model	Ultra Librarian CDRH5D18NP-5R4NC CAD Model

Alternative Products

Description

The CDRH5D18NP-5R4NC is a fixed inductor from Sumida America Components Inc. It is part of the CDRH5D18 series and is designed for use in inductors, coils, and chokes applications.

Series: CDRH5D18
Package: Tape & Reel
Size / Dimension: 0.224" L x 0.224" W (5.70mm x 5.70mm)
Inductance: 5.4 µH
Maximum Seated Height: 0.079" (2.00mm)
DC Resistance (DCR): 76mOhm Max
Operating Temperature: -40°C to 125°C
Current Rating: 1.6 A
