Same model may have multiple batches, images only for reference.

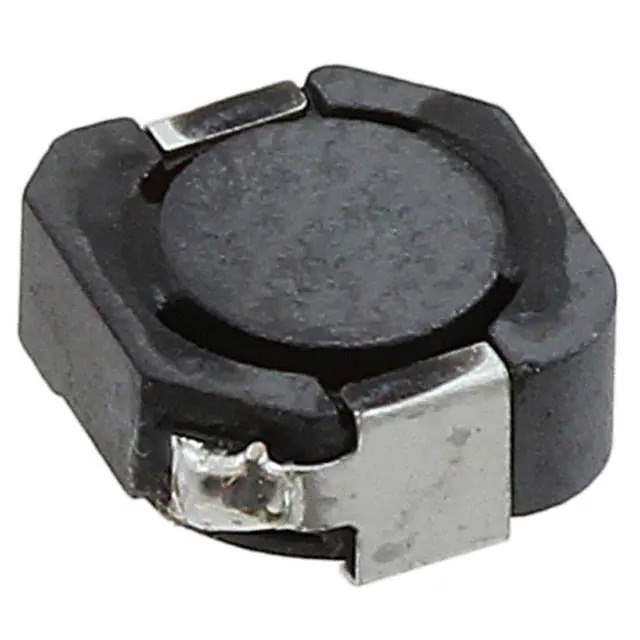

CDRH8D43RT125NP-100MC Real Image
Same model may have multiple batches, images only for reference.

CDRH8D43RT125NP-100MC

Part No CDRH8D43RT125NP-100MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 2.7A 45 MOHM SMD / 10 μH Shielded Inductor 2.7 A 45mOhm Max Nonstandard
Datasheet
CDRH8D43RT125NP-100MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH8D43R/T125
Package Tape & Reel
Product Status Active
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 2.7 A
Current - Saturation (Isat) 3.5A
Shielding Shielded
DC Resistance (DCR) 45mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.319" L x 0.315" W (8.10mm x 8.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 866279-CDRH8D43RT125NP-100MC
Ultra Librarian 3D Model Ultra Librarian CDRH8D43RT125NP-100MC CAD Model

Description

The CDRH8D43RT125NP-100MC is a shielded fixed inductor manufactured by Sumida America Components Inc.

  • Series: CDRH8D43R/T125
  • Package: Tape & reel
  • Size: 0.319" L x 0.315" W (8.10mm x 8.00mm)
  • Maximum Seated Height: 0.177" (4.50mm)
  • Inductance: 10 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 45mOhm max
  • Current Rating: 2.7 A
  • Operating Temperature: -40°C to 125°C
  • Status: Active
  • Standard Package: 500 pcs
