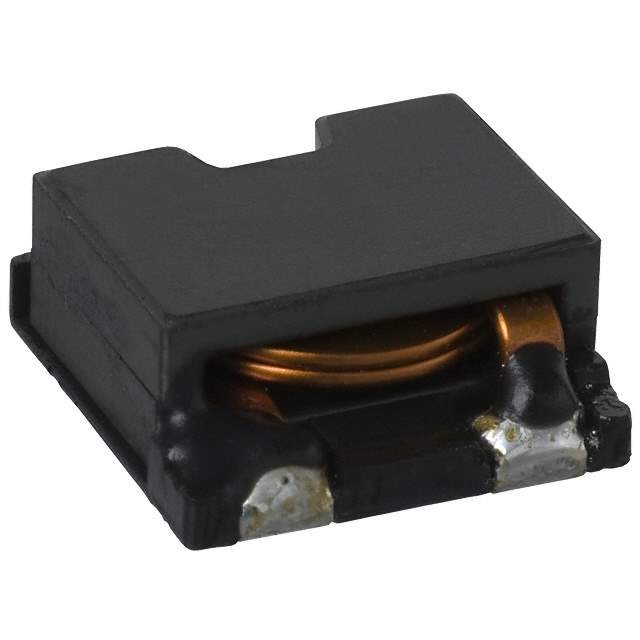

CEP125NP-5R6MC-H

Name: CEP125NP-5R6MC-H
Brand: Sumida America Components Inc.
SKU: 1051798
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CEP125NP-5R6MC-H
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 5.6UH 8.2A 11.4MOHM SM / 5.6 µH Shielded Drum Core, Wirewound Inductor 8.2 A 11.4mOhm Max Nonstandard
Datasheet	CEP125NP-5R6MC-H Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Sumida America Components Inc.
Series	CEP125
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	5.6 µH
Tolerance	±20%
Current Rating (Amps)	8.2 A
Current - Saturation (Isat)	8.8A
Shielding	Shielded
DC Resistance (DCR)	11.4mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.220" (5.60mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	308-2325-2,CEP125NP-5R6MC-H-NDL,308-2325-1,Q2969104,308-2325-6,CEP125NP-5R6MC-H-ND
Standard Package	500
Win Source Part Number	1051798-CEP125NP-5R6MC-H
Ultra Librarian 3D Model	Ultra Librarian CEP125NP-5R6MC-H CAD Model

Alternative Products

Description

The CEP125NP-5R6MC-H is a drum core, wirewound inductor from Sumida America Components Inc.

Shielding Feature: yes
Inductance: 5.6 μH
Tolerance: ±20%
DC Resistance (DCR): 11.4 mOhm maximum
Height: 0.220" (5.60 mm)
Dimension: 0.492" L x 0.492" W (12.50 mm x 12.50 mm)
Operating Temperature: -40°C to 125°C
Supplier Device Package: nonstandard
Ideal Use: power supplies, DC-DC converters, and other applications where power filtering is required
