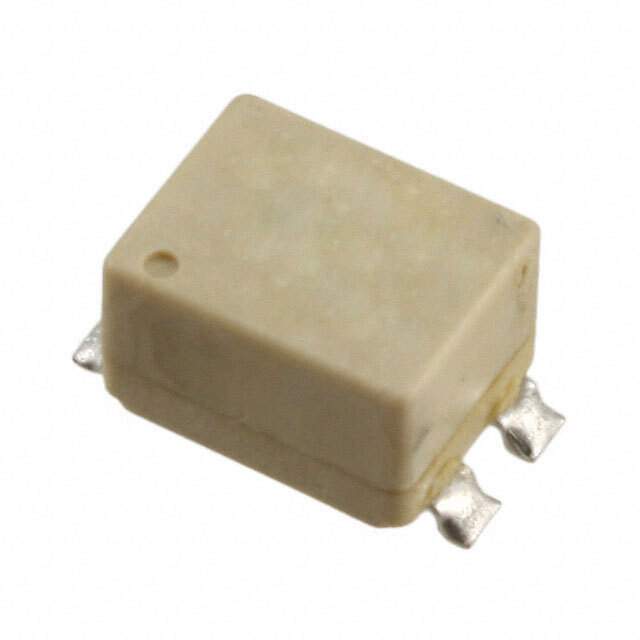

CPFC74NP-PS02H2A20 Real Image
Same model may have multiple batches, images only for reference.

CPFC74NP-PS02H2A20

Part No CPFC74NP-PS02H2A20
Manufacturer Sumida America Components Inc.
Catalog Common Mode Chokes
Description CMC 2A 2LN 200 OHM SMD
Datasheet
CPFC74NP-PS02H2A20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 30 Weeks
Features 2 Line Common Mode Choke Surface Mount 2A DCR 120mOhm (Typ)
Manufacturer Sumida America Components Inc.
Series CPFC
Package Reel - TR
Mounting Surface Mount
Package Vertical, 4 Gull Wing
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 308-1559-6, CPFC74NPPS02H2A20, 308-1559-2, Q5351766, 308-1559-1
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 867107-CPFC74NP-PS02H2A20
Ultra Librarian 3D Model Ultra Librarian CPFC74NP-PS02H2A20 CAD Model

Description

The Sumida America Components Inc. CPFC74NP-PS02H2A20 is a 2 line common mode choke surface mount with a 2A DCR of 120mOhm (Typ).

  • Win Source Part Number: 867107-CPFC74NP-PS02H2A20
  • Mounting: Surface mountable
  • Category: Filters
  • Series: CPFC series
  • Quantity per Package: 1000
  • Estimated Production Lead Time: 30 weeks
