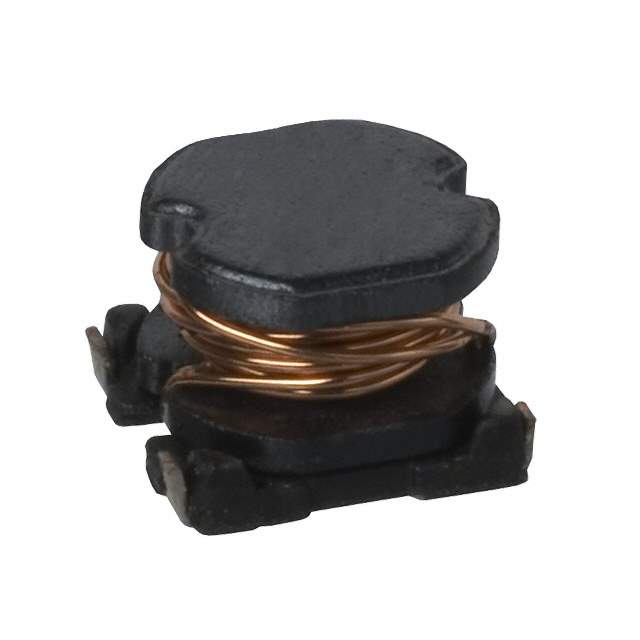

Same model may have multiple batches, images only for reference.

CR43NP-2R2MC

Name: CR43NP-2R2MC
Brand: Sumida America Components Inc.
SKU: 580338
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CR43NP-2R2MC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	POWER INDUCTORS
Datasheet	CR43NP-2R2MC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Sumida America Components Inc.
Series	CR43
Packaging	Reel - TR
Type	Wirewound
Material - Core	Ferrite
Inductance	2.2μH
Tolerance	±20%
Current Rating	1.75A
Shielding	Unshielded
DC Resistance (DCR)	71.2 mOhm Max
Frequency - Self Resonant	68.3MHz
Operating Temperature Range	-40°C ~ 100°C
Test Frequency	7.96MHz
Mounting	SMD
Package	Nonstandard
Size	0.189" L x 0.169" W (4.80mm x 4.30mm)
Height - Seated (Maximum)	0.138" (3.50mm)
Win Source Part Number	1163026-CR43NP-2R2MC
Manufacturer Homepage	www.sumida.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian CR43NP-2R2MC CAD Model

Alternative Products

Description

Sumida America Components Inc.'s CR43 series wirewound inductor has an inductance of 2.2μH.

Inductance: 2.2μH
Current Rating: 1.75A
Tolerance: ±20%
Shielding: Unshielded
Operating Temperature: -40°C to 100°C
Size: 0.189" L x 0.169" W (4.80mm x 4.30mm)
DC Resistance (DCR): 71.2 mOhm Max
Commonly Used In: Inductors, coils, and chokes
