Same model may have multiple batches, images only for reference.

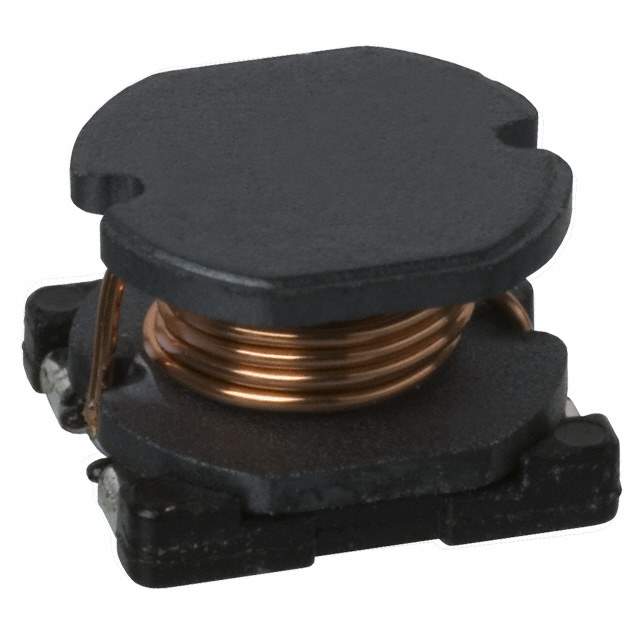

CR75NP-120KC Real Image
Same model may have multiple batches, images only for reference.

CR75NP-120KC

Part No CR75NP-120KC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 12UH 2A 80 MOHM SMD / 12 µH Unshielded Drum Core, Wirewound Inductor 2 A 80mOhm Max Nonstandard
Datasheet
CR75NP-120KC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CR75
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 12 µH
Tolerance ±10%
Current Rating (Amps) 2 A
Shielding Unshielded
DC Resistance (DCR) 80mOhm Max
Frequency - Self Resonant 23MHz
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 2.52 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.217" (5.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names CR75NP-120KCTR
Standard Package 1,000
Win Source Part Number 1184003-CR75NP-120KC
Ultra Librarian 3D Model Ultra Librarian CR75NP-120KC CAD Model

Description

The CR75 series of inductors are wirewound drum core type with 12µH inductance and ±10% tolerance.

  • Inductance: 12µH
  • Tolerance: ±10%
  • Package/Case: Nonstandard
  • Shielding: Unshielded
  • Core Material: Ferrite
  • DC Resistance: 80mOhm max
  • Operating Temperature: -40°C to 100°C
  • Current Rating: 2A
  • Height: 0.217" (5.50mm) when seated
  • Mounting: SMD (SMT)
