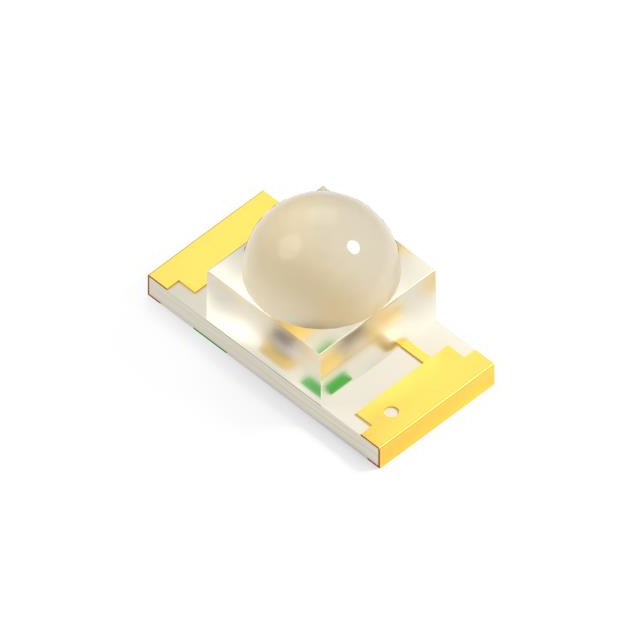

XZTNI55W-3 Real Image
Same model may have multiple batches, images only for reference.

XZTNI55W-3

Part No XZTNI55W-3
Manufacturer SunLED
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 50MA 1206  /  Infrared (IR) Emitter 940nm 1.2V 50mA 2mW/sr @ 20mA 40° 1206 (3216 Metric)
Datasheet
XZTNI55W-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr SunLED
Series PX Series
Package Tape & Reel
Type Infrared (IR)
Current - DC Forward (If) (Max) 50mA
Radiant Intensity (Ie) Min @ If 2mW/sr @ 20mA
Wavelength 940nm
Voltage - Forward (Vf) (Typ) 1.2V
Viewing Angle 40°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Base Product Number XZTNI55
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1497-1368-6,1497-1368-1,1497-1368-2,XZTNI55W-3-ND
Standard Package 2,000
Win Source Part Number 1106014-XZTNI55W-3
Ultra Librarian 3D Model Ultra Librarian XZTNI55W-3 CAD Model

Description

The SunLED XZTNI55W-3 is a part of the optoelectronics category and is an infrared (IR) LED emitter.

  • Manufacturer: SunLED
  • Category: Optoelectronics
  • Type: Infrared (IR) LED Emitter
  • Viewing Angle: 40 degrees
  • Voltage Forward (Vf): 1.2V
  • Package Type: Tape and Reel
  • Standard Package: 2,000
  • Series: PX Series
  • Wavelength: 940nm
  • Radiant Intensity (Ie) @ 20mA: 2mW/sr
  • Temperature Range: -40°C to 85°C (TA)
