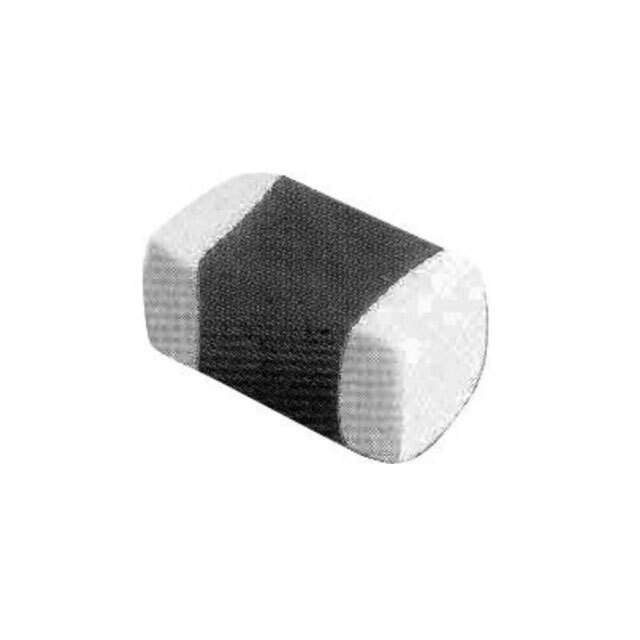

MPH160805SR68MT Real Image
Same model may have multiple batches, images only for reference.

MPH160805SR68MT

Part No MPH160805SR68MT
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 680NH 900MA 275MOHM SM / 680 nH Shielded Multilayer Inductor 900 mA 275mOhm Max 0603 (1608 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Shenzhen Sunlord Electronics Co., Ltd.
Series MPH
Package Tape & Reel (TR)
Type Multilayer
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 900 mA
Current - Saturation (Isat) 650mA
Shielding Shielded
DC Resistance (DCR) 275mOhm Max
Frequency - Self Resonant 100MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 3442-MPH160805SR68MTTR
Standard Package 5,000
Win Source Part Number 958114-MPH160805SR68MT
Ultra Librarian 3D Model Ultra Librarian MPH160805SR68MT CAD Model

Description

The Shenzhen Sunlord Electronics Co., Ltd. MPH fixed inductor is a tape & reel (TR) component with a shielding feature.

  • Inductance: 680 nH
  • Tolerance: ±20%
  • DC Resistance (DCR): 275mOhm Max
  • Height: 0.022" (0.55mm)
  • Series: MPH
  • Package/Case: 0603 (1608 Metric)
  • Temperature Range: -55°C ~ 125°C
  • MSL Level: 1 (Unlimited)
  • Current Rating: 900 mA
  • Inductance Frequency-Test: 1 MHz
  • HTSUS Code: 8504.50.8000
