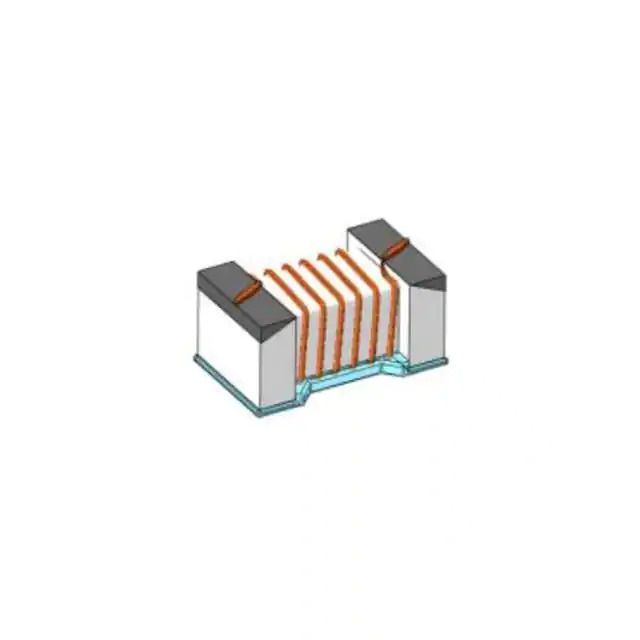

MWSD1005C9N5JTM01 Sunlord
Same model may have multiple batches, images only for reference.

MWSD1005C9N5JTM01

Part No MWSD1005C9N5JTM01
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 9.5NH 540MA 140MOHM SM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Shenzhen Sunlord Electronics Co., Ltd.
Series MWSD-C-M
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 9.5 nH
Tolerance ±5%
Current Rating (Amps) 540 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 140mOhm Max
Q @ Freq 25 @ 250MHz
Frequency - Self Resonant 5.5GHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 MHz
Features -
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.043" L x 0.024" W (1.10mm x 0.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Base Product Number MWSD1005C9
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370325-MWSD1005C9N5JTM01
Ultra Librarian 3D Model Ultra Librarian MWSD1005C9N5JTM01 CAD Model

Description

The MWSD1005C9N5JTM01 is a drum core, wirewound inductor manufactured by Shenzhen Sunlord Electronics Co., Ltd.

  • Series: MWSD-C-M
  • Mounting Type: Surface Mount
  • Package: 0402 (1005 Metric)
  • Size: 0.043" L x 0.024" W (1.10mm x 0.60mm)
  • Height: 0.026" (0.65mm)
  • Material: Ceramic
  • Inductance: 9.5 nH
  • Current Rating: 540 mA
  • Shielding: Unshielded
  • DC Resistance (DCR): 140mOhm Max
  • Q Value: 25 @ 250MHz
  • Self-Resonant Frequency: 5.5GHz
  • Test Frequency: 100 MHz
