Same model may have multiple batches, images only for reference.

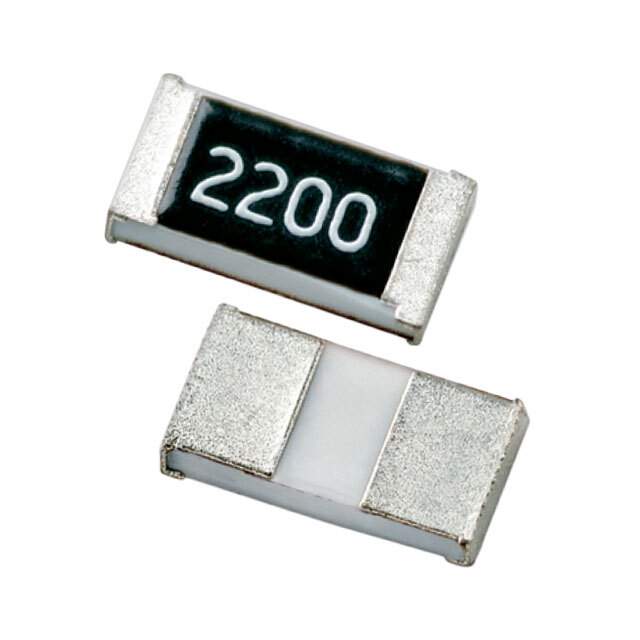

HRG3216P-8200-D-T1 Real Image
Same model may have multiple batches, images only for reference.

HRG3216P-8200-D-T1

Part No HRG3216P-8200-D-T1
Manufacturer Susumu
Catalog Chip Resistor - Surface Mount
Description RES SMD 820 OHM 0.5% 1W 1206 / 820 Ohms ±0.5% 1W Chip Resistor 1206 (3216 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Datasheet
HRG3216P-8200-D-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Susumu
Packaging Reel - TR
Resistance 820 Ohms
Tolerance ±0.5%
Power (Watts) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 408-1942-6,408-1942-1,408-1942-2
Standard Package 1,000
Win Source Part Number 1326355-HRG3216P-8200-D-T1
Ultra Librarian 3D Model Ultra Librarian HRG3216P-8200-D-T1 CAD Model

Description

The Susumu HRG3216P-8200-D-T1 is a chip resistor with a resistance of 820 Ohms and a power rating of 1W.

  • Manufacturer: Susumu
  • Resistance: 820 Ohms
  • Power Rating: 1W
  • Material: Thin Film
  • Tolerance: ±0.5%
  • Temperature Coefficient: ±25ppm/°C
  • Rating: AEC-Q200
  • Features: Moisture Resistant, Anti-Sulfur
  • Size: 0.126" L x 0.065" W (3.20mm x 1.65mm)
  • Height: 0.022" (0.55mm)
  • Package: 1206 (3216 Metric)
  • Packaging: Tape and Reel
  • Application: Automotive
