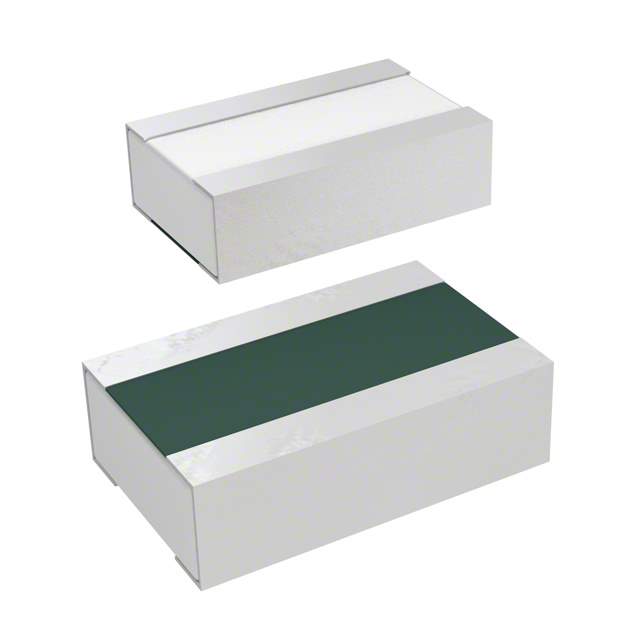

PRL1220-R010-F-T1 Real Image1 PRL1220-R010-F-T1 Real Image2
Same model may have multiple batches, images only for reference.
PRL1220-R010-F-T1 Real Image1 PRL1220-R010-F-T1 Real Image2
PRL1220-R010-F-T1 Real Image1 PRL1220-R010-F-T1 Real Image2
Same model may have multiple batches, images only for reference.

PRL1220-R010-F-T1

Part No PRL1220-R010-F-T1
Manufacturer Susumu
Catalog Chip Resistor - Surface Mount
Description RES 0.01 OHM 2/3W 0805 WIDE / 10 mOhms ±1% 0.667W, 2/3W Chip Resistor Wide 0805 (2012 Metric), 0508 Current Sense Thin Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Susumu
Series PRL
Package Tape & Reel (TR)
Resistance 10 mOhms
Tolerance ±1%
Power (Watts) 0.667W, 2/3W
Composition Thin Film
Features Current Sense
Temperature Coefficient 0/ +200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case Wide 0805 (2012 Metric), 0508
Supplier Device Package 0805
Dimension 0.049" L x 0.079" W (1.25mm x 2.00mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names Q6921469
Standard Package 1,000
Win Source Part Number 1107543-PRL1220-R010-F-T1
Ultra Librarian 3D Model Ultra Librarian PRL1220-R010-F-T1 CAD Model

Description

The Susumu PRL1220-R010-F-T1 is a thin film resistor with a resistance of 10 mOhms and a power rating of 0.667W (2/3W).

  • Tolerance: ±1%
  • Temperature Coefficient: 0/+200ppm/°C
  • Designed for: Current sensing applications
  • Package: Tape & Reel (TR)
  • Height: 0.024" (0.60mm)
  • Dimension: 0.049" L x 0.079" W (1.25mm x 2.00mm)
  • Operating Temperature Range: -55°C to 125°C
