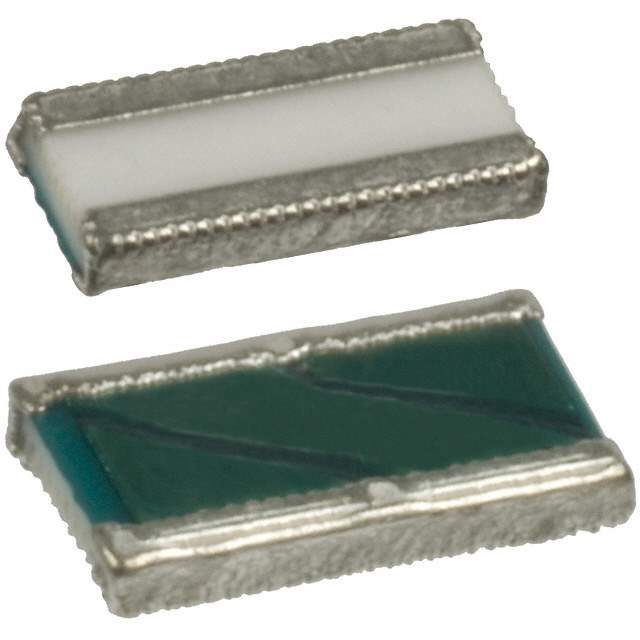

PRL1632-R006-F-T1 Real Image
Same model may have multiple batches, images only for reference.

PRL1632-R006-F-T1

Part No PRL1632-R006-F-T1
Manufacturer Susumu
Catalog Chip Resistor - Surface Mount
Description RES 0.006 OHM 1W 1206 WIDE / 6 mOhms ±1% 1W Chip Resistor Wide 1206 (3216 Metric), 0612 Current Sense Thin Film
Datasheet
PRL1632-R006-F-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Susumu
Packaging Reel - TR
Resistance 6 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Thin Film
Features Current Sense
Temperature Coefficient 0/ +350ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Case / Package Wide 1206 (3216 Metric), 0612
Supplier Device Package 1206
Size / Dimension 0.063" L x 0.126" W (1.60mm x 3.20mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number PRL1632.006FTR,PRL1632.006FDKR,PRL1632R006FT1,PRL1632.006FCT
Standard Package 1,000
Win Source Part Number 1330804-PRL1632-R006-F-T1
Ultra Librarian 3D Model Ultra Librarian PRL1632-R006-F-T1 CAD Model

Description

The PRL1632-R006-F-T1 is a thin film chip resistor from Susumu.

  • Resistance: 6 mOhms
  • Power Rating: 1W
  • Tolerance: ±1%
  • Temperature Coefficient: 0/ +350ppm/°C
  • Application: Current Sensing
  • Packaging: Reel
  • Package Size: Wide 1206 (3216 Metric), 0612
  • Device Package: 1206
  • Temperature Range: -55°C to 125°C
  • Dimensions: 0.063" L x 0.126" W (1.60mm x 3.20mm)
  • Composition: Thin Film
  • Terminations: 2
