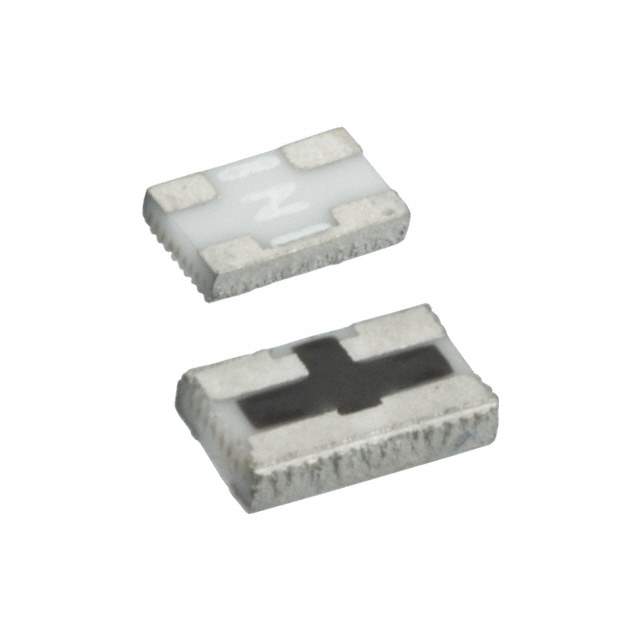

PXV1220S-3DBN1-T02 Real Image
Same model may have multiple batches, images only for reference.

PXV1220S-3DBN1-T02

Part No PXV1220S-3DBN1-T02
Manufacturer Susumu
Catalog Attenuators
Description ATTENUATOR 3DB 50 OHM 0805 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Susumu
Status Active
Attenuation Value 3dB
Tolerance ±0.5dB
Frequency Range 0 to 3GHz
Power (Watts) 0.063W, 1/16W
Impedance 50 Ohm
Dimension 0805 (2012 Metric)
Win Source Part Number 124659-PXV1220S-3DBN1-T02
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PXV1220S-3DBN1-T02 CAD Model

Description

The PXV1220S-3DBN1-T02 is a surface-mount fixed attenuator manufactured by Susumu. The device is in the medium popularity category and has a balanced supply and demand status. The PXV1220S-3DBN1-T02 is designed for use in RF and microwave circuits and has a frequency range of 0 to 3 GHz. The device has a nominal attenuation value of 3 dB and a tolerance of ±0.5 dB. The PXV1220S-3DBN1-T02 is an ideal solution for RF and microwave circuits that require precise attenuation control.
