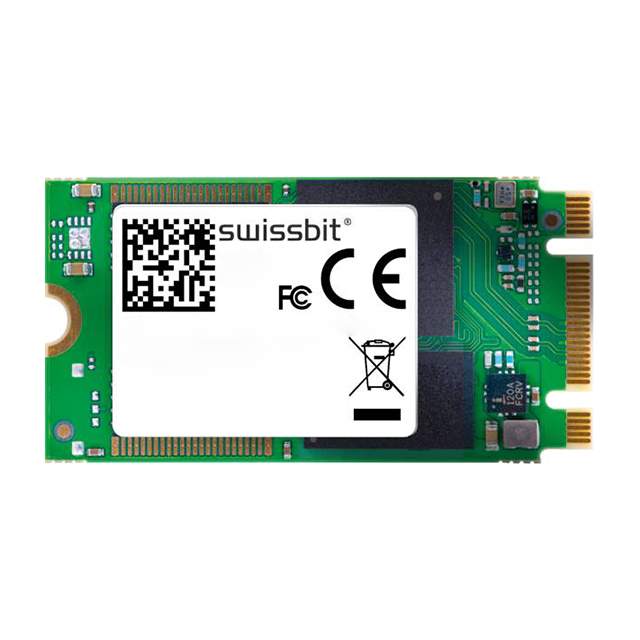

SFSA064GM1AA2TO-I-NC-216-STD Real Image
Same model may have multiple batches, images only for reference.

SFSA064GM1AA2TO-I-NC-216-STD

Part No SFSA064GM1AA2TO-I-NC-216-STD
Manufacturer Swissbit NA Inc.
Catalog Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Description SSD 64GB M.2 SLC SATA III 3.3V / Solid State Drive (SSD) FLASH - NAND (SLC) 64GB SATA III M.2 Module 3.3V
Datasheet
SFSA064GM1AA2TO-I-NC-216-STD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Memory Cards, Modules>Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Mfr Swissbit
Series X-600M2
Package Tray
Product Status Not For New Designs
Memory Size 64GB
Memory Type Solid State Drive (SSD) FLASH - NAND (SLC)
Form Factor M.2 Module
Speed - Read 520MB/s
Speed - Write 245MB/s
Voltage - Supply 3.3V
Type SATA III
Current - Max 515mA
Temperature Range - Operating -40°C ~ 85°C
Dimension 42.00mm x 22.00mm x 3.30mm
Base Product Number SFSA064
Other Names SFSA064GM1AA2TO-I-NC-216-STD,605345,1052-1288
Standard Package 1
MSL Level Not Applicable
ECCN 3A991B1A
HTSUS 8471.70.6000
Win Source Part Number 1243016-SFSA064GM1AA2TO-I-NC-216-STD
Ultra Librarian 3D Model Ultra Librarian SFSA064GM1AA2TO-I-NC-216-STD CAD Model

Description

The Swissbit X-600M2 is a 64GB solid state drive (SSD) memory card module with a SATA III type and M.2 module form factor.

  • Maximum Current: 515mA
  • Temperature Range: -40°C to 85°C
