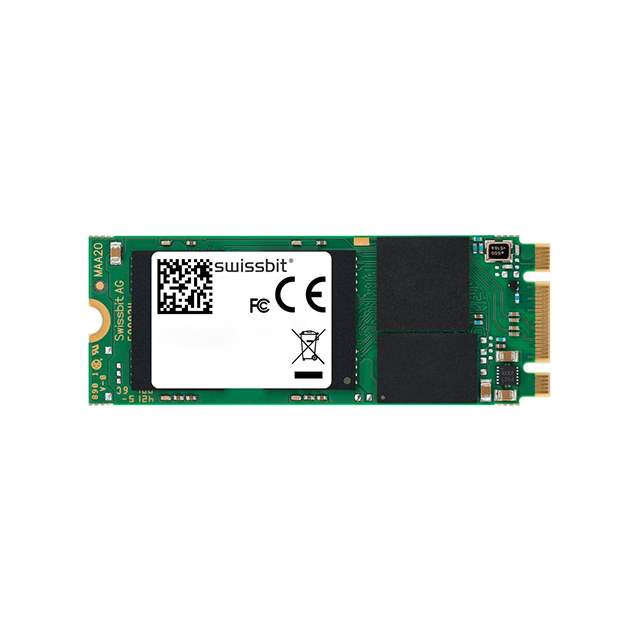

SFSA480GM1AA4TO-I-OC-416-STD Real Image
Same model may have multiple batches, images only for reference.

SFSA480GM1AA4TO-I-OC-416-STD

Part No SFSA480GM1AA4TO-I-OC-416-STD
Manufacturer Swissbit NA Inc.
Catalog Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Description SSD 480GB M.2 MLC SATA III 3.3V / Solid State Drive (SSD) FLASH - NAND (MLC) 480GB SATA III M.2 Module 3.3V
Datasheet
SFSA480GM1AA4TO-I-OC-416-STD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Memory Cards, Modules>Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Mfr Swissbit
Series X-60M2
Package Tray
Product Status Obsolete
Memory Size 480GB
Memory Type Solid State Drive (SSD) FLASH - NAND (MLC)
Form Factor M.2 Module
Speed - Read 520MB/s
Speed - Write 450MB/s
Voltage - Supply 3.3V
Type SATA III
Current - Max 960mA
Temperature Range - Operating -40°C ~ 85°C
Dimension 60.00mm x 22.00mm x 3.30mm
Other Names Q11260366A,605350,SFSA480GM1AA4TO-I-OC-416-STD,1052-1310
Standard Package 1
MSL Level 1 (Unlimited)
ECCN 3A991B1A
HTSUS 8471.70.6000
Win Source Part Number 1242966-SFSA480GM1AA4TO-I-OC-416-STD
Ultra Librarian 3D Model Ultra Librarian SFSA480GM1AA4TO-I-OC-416-STD CAD Model

Description

The SFSA480GM1AA4TO-I-OC-416-STD is a solid-state drive (SSD) memory module from Swissbit.

  • Series: X-60M2
  • Interface: SATA III type
  • Package: tray
  • Standard Package: one
  • Maximum Current: 960mA
  • Memory Size: 480GB
  • Voltage Supply: 3.3V
  • Temperature Range: -40°C to 85°C
  • Dimension: 60.00mm x 22.00mm x 3.30mm
  • Form Factor: M.2 module
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8471.70.6000
  • Status: obsolete product.
