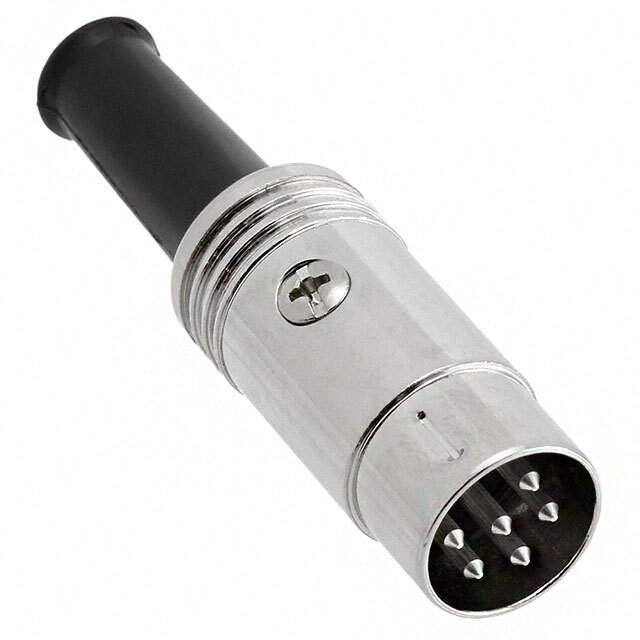

12BL6MX Real Image
Same model may have multiple batches, images only for reference.

12BL6MX

Part No 12BL6MX
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Description CONN DIN MALE PLUG 6POS STR
Datasheet
12BL6MX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Switchcraft Inc.
Packaging Bulk
Connector Type Plug, Male Pins
Number of Positions 6
Shell Size - Insert DIN (240 Degree)
Mounting Free Hanging (In-Line)
Termination Solder
Fastening Type Push-Pull
Orientation 6
Shell Material, Finish Zinc Die Cast, Nickel Plated
Contact Finish Tin
Features Cable Clamp, Strain Relief
Voltage Rating DC 34VDC
Current Rating 3A
Win Source Part Number 760350-12BL6MX
Popularity Medium
Supply and Demand Status Balance
Family Name 12BL6M
Introduction Date January 21, 1998
ECCN EAR99
Country of Origin Portugal, United States of America
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 12BL6MX CAD Model

Description

The Switchcraft Inc. 760350-12BL6MX is a 6-position plug male pins connector with push-pull fastening type.

  • Positions: 6
  • Pins: Male
  • Fastening Type: Push-Pull
  • Features: Cable Clamp, Strain Relief
  • Termination: Solder
  • Shell Material: Zinc Die-Cast, Nickel Plated
  • Mounting Type: Free-Hanging (In-Line)
  • Series: 12BL6M
  • Current Rating: 3A
  • Voltage Rating: 34VDC
  • Applications: Connectors, Interconnects
  • Country of Origin: Portugal, United States of America
  • Estimated EOL Date: 2026
