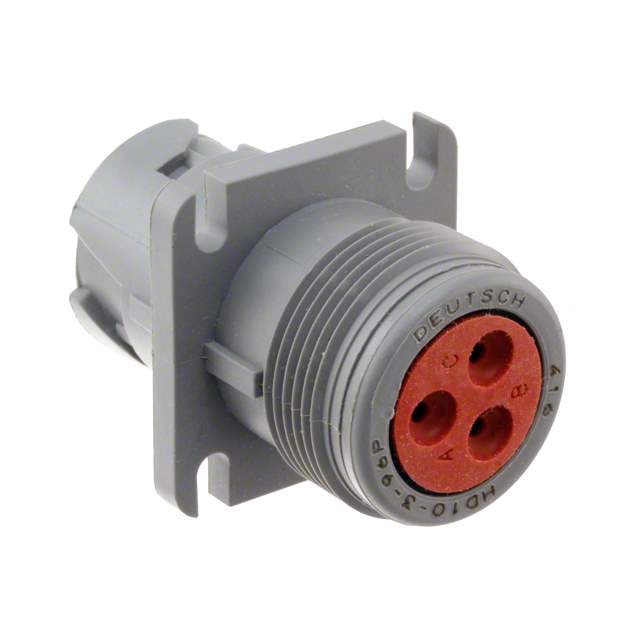

HD10-3-96P Real Image
Same model may have multiple batches, images only for reference.

HD10-3-96P

Part No HD10-3-96P
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN RCPT HSNG MALE 3POS PNL MNT  /  3 Position Circular Connector Receptacle Housing Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series HD10
Package Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 3
Shell Size - Insert 3-96
Contact Type Crimp
Contact Size 16
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA), Nylon, Glass Filled
Housing Color Gray
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Shielding Unshielded
Note Contacts Not Included
Insert Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Circular
Temperature Range - Operating -40°C ~ 125°C
Base Product Number HD10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Names -HD10-3-96P-SI,1734-1308
Standard Package 1
Win Source Part Number 1063748-HD10-3-96P
Ultra Librarian 3D Model Ultra Librarian HD10-3-96P CAD Model

Description

The HD10-3-96P is a receptacle housing connector designed for male pins.

  • Positions: 3
  • Contact Size: 16
  • Connector Type: Crimp
  • Fastening Type: Bayonet Lock
  • Ingress Protection: IP68
  • Housing Color: Gray
  • Orientation: Keyed
  • Shell Size: Insert 3-96
  • Mounting Type: Panel Mount
  • Temperature Range: -40°C to 125°C
  • Shell Material: Polyamide (PA), Nylon, Glass Filled
  • Insert Material: Polyamide (PA), Nylon, Glass Filled
