Same model may have multiple batches, images only for reference.

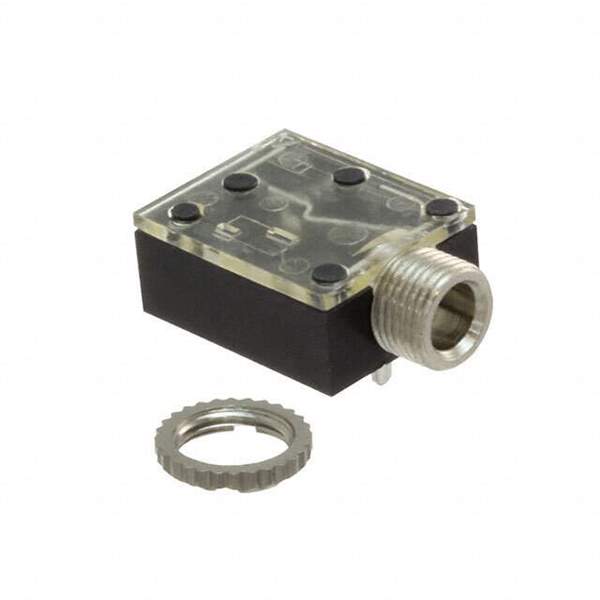

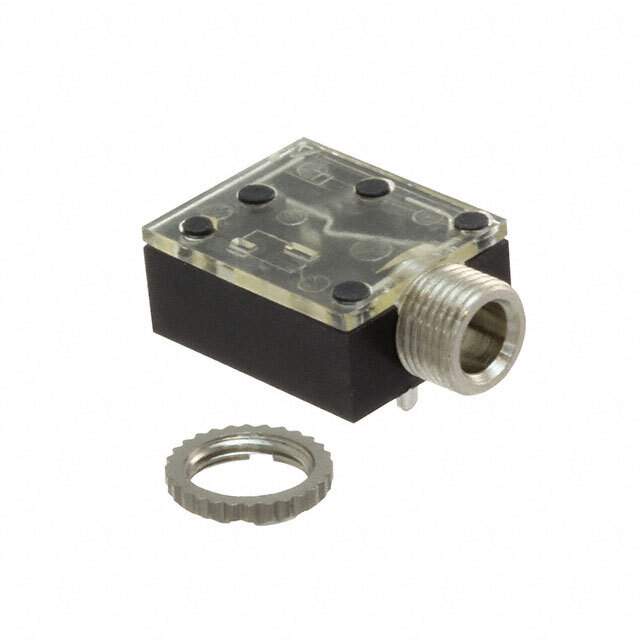

35RAPC2AH3 Real Image
Same model may have multiple batches, images only for reference.

35RAPC2AH3

Part No 35RAPC2AH3
Manufacturer Switchcraft Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK MONO 3.5MM R/A / Conn 3.5MM Mono Jack F 2 POS Solder RA Thru-Hole 2 Terminal 1 Port
Datasheet
35RAPC2AH3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Switchcraft Inc.
Series 35
Packaging Bulk
Connector Type Phone Jack
Gender Female
Signal Lines Mono
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch
Mounting Panel Mount, Through Hole, Right Angle
Termination Solder
Shielding Unshielded
Features Mounting Hardware, Thread Lock
Contact Material - Plating Silver
Body Material Brass
Body Color Silver, Black
Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Housing Material Polybutylene Terephthalate (PBT)
Contact Material Copper Alloy
Thread Size M6
Win Source Part Number 793952-35RAPC2AH3
Popularity Medium
Supply and Demand Status Limited
Family Name 35RAPC
Introduction Date January 16, 1998
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 35RAPC2AH3 CAD Model

Description

The Switchcraft Inc. 793952-35RAPC2AH3 is a phone jack connector.

  • Housing Material: Polybutylene Terephthalate (PBT)
  • Contact Material: Copper Alloy
  • Mounting Style: Panel Mount, Through Hole, Right Angle
  • Included: 3 pcs - 1 Connector, 1 Nut, 1 Washer
  • Conductors: 2
  • Contacts: 3
  • Signal Line: Mono
  • Thread Size: M6
  • Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
  • Shielded: Yes
  • Contact Plating: Silver
  • Connector Type: Female
  • Body Color: Silver and Black
  • Supply and Demand Status: Limited
  • Termination: Solder
  • Introduction Date: January 16, 1998
  • ECCN: EAR99
  • Origin: Taiwan
  • Estimated EOL Date: 2027
