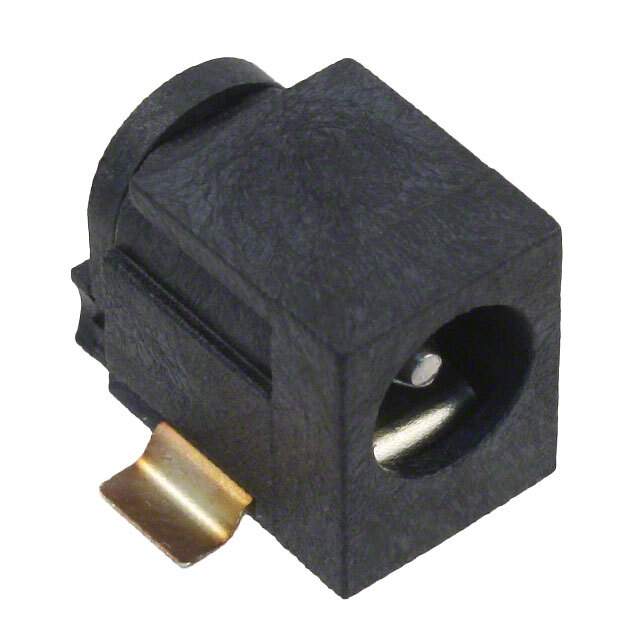

RASM722X Real Image
Same model may have multiple batches, images only for reference.

RASM722X

Part No RASM722X
Manufacturer Switchcraft Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 2.1X5.5MM SOLDER / Conn Power PL 2 POS Solder RA SMD 3 Terminal 1 Port Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Switchcraft Inc.
Packaging Bulk
Status Active
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter 0.076" (1.93mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Surface Mount, Right Angle
Termination Solder
Current Rating 5A
Contact Material - Plating Tin
Housing Material Thermoplastic
Body Color Black
Win Source Part Number 290198-RASM722X
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name RASM
Introduction Date October 23, 1997
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian RASM722X CAD Model

Description

This Switchcraft Inc. connector is a male surface mount jack with a right-angle mounting feature.

  • Type: Male surface mount jack
  • Mounting: Right-angle
  • Conductors: 2
  • Contacts: 3
  • Internal Switch: Single switch, normally closed
  • Housing Material: Thermoplastic
  • Contact Material: Tin plating
  • Actual Diameter: 0.076" (1.93mm ID) and 0.248" (6.30mm OD)
  • Series: RASM
  • Market Status: Active
  • Win Source Part Number: 290198-RASM722X
