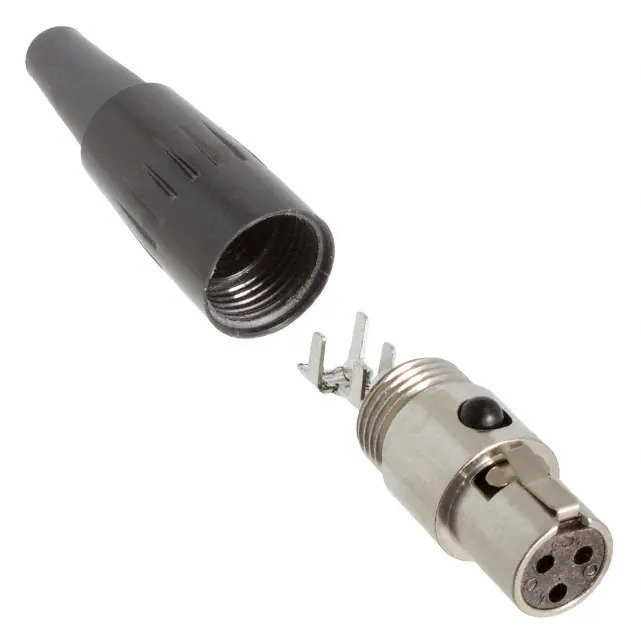

TA3FX Switchcraft Inc.
Same model may have multiple batches, images only for reference.

TA3FX

Part No TA3FX
Manufacturer Switchcraft Inc.
Catalog Circular Connectors - Assemblies
Description CONN PLUG FMALE MINI XLR 3P SLDR / 3 Position Circular Connector Plug, Female Sockets Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Switchcraft Inc.
Series Tini Q-G® TA-X
Package Bulk
Product Status Active
Connector Type Plug, Female Sockets
Number of Positions 3
Shell Size - Insert Mini XLR
Shell Size, MIL -
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Termination Solder
Fastening Type Latch Lock
Orientation Keyed
Primary Material Metal
Shell Material Copper Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Black, Silver
Ingress Protection -
Material Flammability Rating -
Features Backshell, Cable Clamp, Strain Relief
Shielding Shielded
Current Rating (Amps) 5A
Voltage Rating 125VAC
Cable Opening 0.065" ~ 0.155" (1.65mm ~ 3.94mm)
Temperature Range - Operating -55°C ~ 85°C
Backshell Material, Plating Thermoplastic
Contact Material Copper Alloy
Contact Finish Thickness - Mating -
Insert Material Thermoplastic
Applications Audio
Base Product Number -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1355036-TA3FX
Ultra Librarian 3D Model Ultra Librarian TA3FX CAD Model

Description

The TA3FX is a circular connector assembly manufactured by Switchcraft Inc.

  • Series: Tini Q-G® TA-X
  • Connector Type: Plug, Female Sockets
  • Number of Positions: 3
  • Shielded: Yes
  • Current Rating: 5A
  • Voltage Rating: 125VAC
  • Fastening Type: Latch Lock
  • Termination Type: Solder
  • Mounting Type: Free Hanging (In-Line)
  • Contact Material: Copper Alloy
  • Contact Finish: Silver
  • Operating Temperature: -55°C to 85°C
  • Application: Audio Equipment
