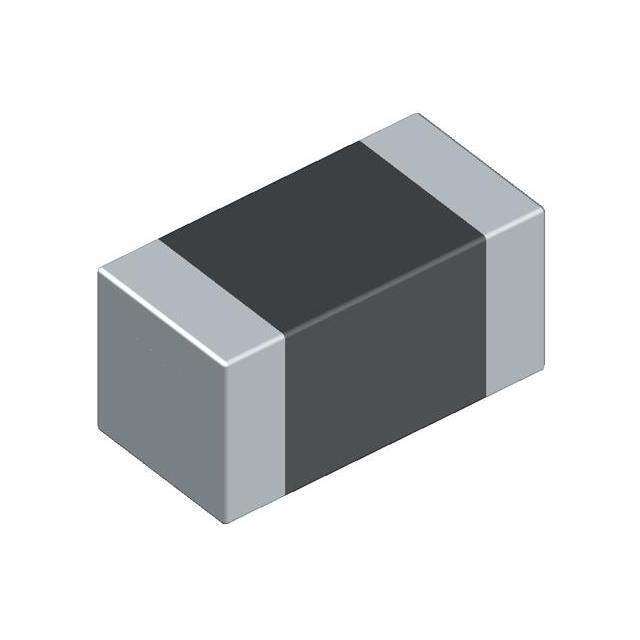

The HCB1608KF-301T20 is a high-current power inductor manufactured by TA-I Technology Co., Ltd. It is designed for use in a wide variety of power supply and filtering applications, providing efficient energy storage and minimizing losses in DC-DC converters and other circuits. Its compact size and robust construction make it suitable for demanding environments and high-density circuit designs.

Applications

• DC-DC converters
• Power supplies for portable devices
• Voltage regulators
• EMI filtering
• Power amplifiers

Features

• Small size (1.6mm x 0.8mm footprint)
• High current carrying capacity
• Low DC resistance (DCR)
• Excellent temperature stability
• Magnetically shielded construction
• RoHS compliant

Benefits

• Efficient power conversion: The low DCR minimizes power losses, increasing the efficiency of the power supply.
• Compact design: The small footprint allows for high-density circuit designs, saving valuable board space.
• Reliable performance: The robust construction and excellent temperature stability ensure reliable performance in harsh environments.
• Reduced EMI: The magnetically shielded construction reduces electromagnetic interference, improving the overall system performance.
• Wide operating temperature range: The inductor can operate over a wide temperature range, making it suitable for various applications.

Technical Specifications

The HCB1608KF-301T20 has an inductance value of 300nH and a tolerance of 20%. Its saturation current is approximately 0.6A, and its operating temperature ranges from -40°C to +125°C. The DC resistance is typically around 0.2 ohms. It is surface mountable and comes in tape and reel packaging for automated assembly.

The inductor's shielded construction minimizes electromagnetic interference, making it suitable for use in sensitive electronic devices. Its small size and high current capabilities make it a popular choice for portable devices, such as smartphones, tablets, and laptops.
