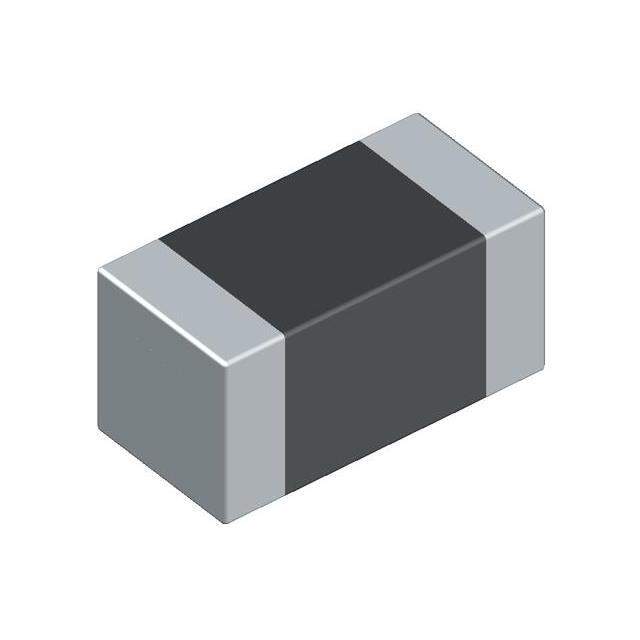

Same model may have multiple batches, images only for reference.

HCB 2012KF-221T30

Name: HCB 2012KF-221T30
Brand: TAI-TECH Advanced Electronics
SKU: 1382209
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HCB 2012KF-221T30
Manufacturer	TAI-TECH Advanced Electronics
Catalog	Ferrite Beads and Chips
Description	220 OHMS @ 100 MHZ 1 POWER, SIGN / 220 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0805 (2012 Metric) 3A 40mOhm
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Ferrite Beads and Chips
Mfr	TAI-TECH Advanced Electronics
Series	HCB2012
Package	Tape & Reel
Filter Type	Power Line
Number of Lines	1
Impedance @ Frequency	220 Ohms @ 100 MHz
Current Rating (Max)	3A
DC Resistance (DCR) (Max)	40mOhm
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Package / Case	0805 (2012 Metric)
Mounting Type	Surface Mount
Height (Max)	0.041" (1.05mm)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Features	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
Standard Package	4,000 pcs
Win Source Part Number	1382209-HCB 2012KF-221T30
Ultra Librarian 3D Model	Ultra Librarian HCB 2012KF-221T30 CAD Model

Alternative Products

Description

The 1382209-HCB 2012KF-221T30 is a ferrite bead and chip filter designed for power line applications.

Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
Maximum Current Rating: 3A
Impedance (@ 100 MHz): 220 Ohms
DC Resistance: 40mOhm
Mounting Type: Surface Mount
Package: 0805 (2012 Metric)
Operating Temperature: -40°C to 125°C
Manufacturer: TAI-TECH Advanced Electronics
