Same model may have multiple batches, images only for reference.

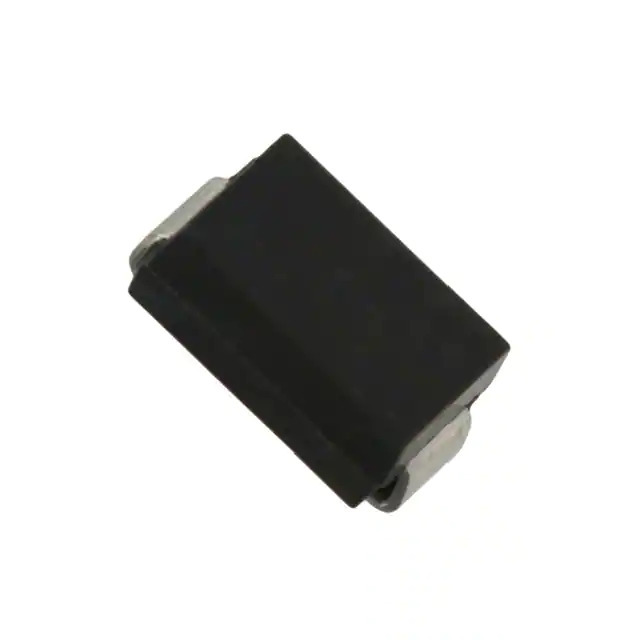

1SMB5929 Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

1SMB5929

Part No 1SMB5929
Manufacturer Taiwan Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 15V 3W DO214AA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Taiwan Semiconductor Corporation
Series -
Package Tape & Reel
Product Status Active
Voltage - Zener (Nom) (Vz) 15 V
Tolerance ±5%
Power - Max 3 W
Impedance (Max) (Zzt) 9 Ohms
Current - Reverse Leakage @ Vr 1 µA @ 11.4 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Base Product Number 1SMB5929
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 1377392-1SMB5929
Ultra Librarian 3D Model Ultra Librarian 1SMB5929 CAD Model

Description

The 1377392-1SMB5929 is a single zener diode from Taiwan Semiconductor Corporation.

  • Voltage Rating: 15V
  • Tolerance: ±5%
  • Power Rating: 3W
  • Maximum Impedance: 9 Ohms
  • Current Reverse Leakage: 1 μA @ 11.4V
  • Mounting Style: Surface Mount
  • Package: DO-214AA (SMB)
  • Temperature Range: -55°C to 150°C
  • REACH Status: Unaffected
  • ECCN: EAR99
