Same model may have multiple batches, images only for reference.

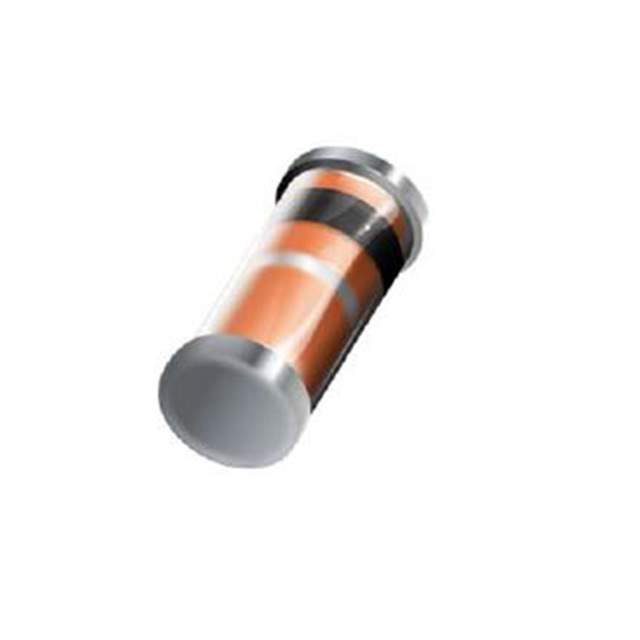

BZV55B36 L1G Real Image
Same model may have multiple batches, images only for reference.

BZV55B36 L1G

Part No BZV55B36 L1G
Manufacturer Taiwan Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 36V 500MW MINI MELF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Zener Diode 36 V 500 mW ±2% Surface Mount Mini MELF
Manufacturer Taiwan Semiconductor
Package Reel - TR
Operating Temperature Range -65°C ~ 175°C (TJ)
Mounting Surface Mount
Package DO-213AC, MINI-MELF, SOD-80
Case / Package Mini MELF
Family Name BZV55
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0050
Other Part Number BZV55B36 L1G-ND, BZV55B36L1G
Quantity per package 2500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 865252-BZV55B36 L1G
Ultra Librarian 3D Model Ultra Librarian BZV55B36 L1G CAD Model

Description

The Taiwan Semiconductor BZV55B36 L1G series Zener diode is a high-quality electronic component designed for use in discrete semiconductor products.

  • Manufacturer: Taiwan Semiconductor
  • Series: BZV55B36 L1G
  • Voltage Rating: 36V
  • Power Rating: 500mW
  • Mounting Type: Surface Mount
  • Package: Mini MELF
  • Tolerance: ±2%
  • Operating Temperature: Up to 175°C (TJ)
  • Packaging: Reel
  • Quantity per Package: 2500
  • Popularity Rating: Medium
  • Category: Discrete Semiconductor Products
