Same model may have multiple batches, images only for reference.

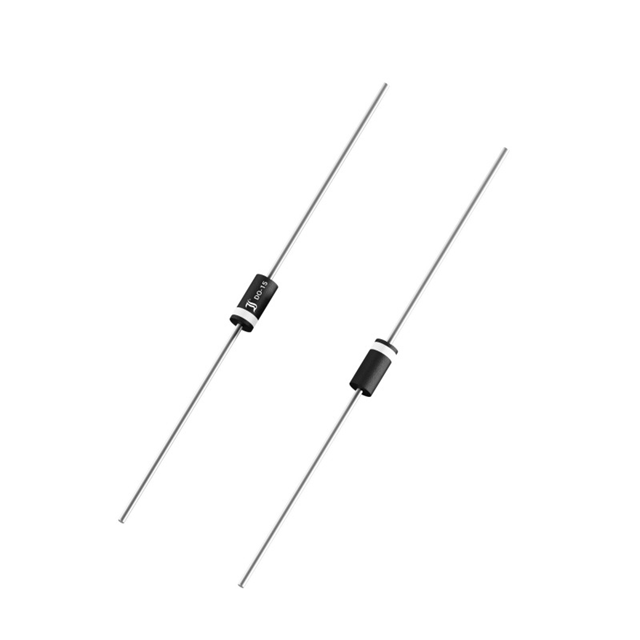

BZW06-20 Real Image
Same model may have multiple batches, images only for reference.

BZW06-20

Part No BZW06-20
Manufacturer Taiwan Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 20.5VWM 42.8VC DO204AC  /  42.8V Clamp 93A (8/20µs) Ipp Tvs Diode Through Hole DO-204AC (DO-15)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Taiwan Semiconductor Corporation
Series BZW06
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 20.5V
Voltage - Breakdown (Min) 22.8V
Voltage - Clamping (Max) @ Ipp 42.8V
Current - Peak Pulse (10/1000µs) 93A (8/20µs)
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
Base Product Number BZW06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names BZW06-20 R0G-ND,BZW06-20 R0G,1801-BZW06-20TR,BZW06-20R0G,BZW06-20R0G-ND,1801-BZW06-20R0G
Standard Package 3,500
Win Source Part Number 1212326-BZW06-20
Ultra Librarian 3D Model Ultra Librarian BZW06-20 CAD Model

Description

The Taiwan Semiconductor Corporation BZW06-20 is a TVS diode used in circuit protection.

  • Channel: Unidirectional
  • Voltage Reverse Standoff: 20.5V
  • Voltage Breakdown: 22.8V
  • Voltage Clamping @ Ipp: 42.8V
  • Power Peak Pulse: 600W
  • Current Peak Pulse: 93A (8/20us)
  • Package: DO-204AC, DO-15, Axial
  • Supplier Device Package: DO-204AC (DO-15)
  • Operating Temperature: -55 to 175 degrees Celsius
  • MSL Level: 1 (unlimited)
  • HTSUS: 8541.10.0080
  • Alternative Parts: BZW06-20 R0G-ND, BZW06-20 R0G, 1801-BZW06-20TR, BZW06-20R0G, BZW06-20R0G-ND, and 1801-BZW06-20R0G
