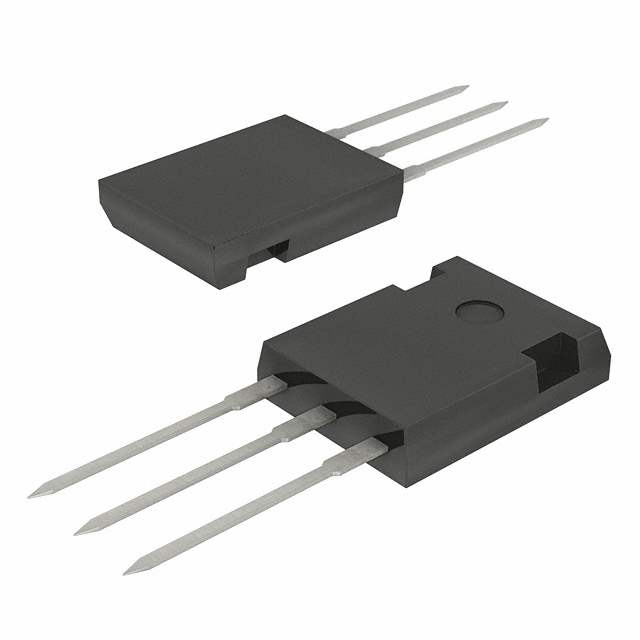

HER3005PT Real Image
Same model may have multiple batches, images only for reference.

HER3005PT

Part No HER3005PT
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 400V 30A TO247AD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 10 µA @ 400 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AD (TO-3P)
Base Product Number HER3005
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 597322-HER3005PT
Ultra Librarian 3D Model Ultra Librarian HER3005PT CAD Model

Description

The 597322-HER3005PT is a diode array designed for rectification applications manufactured by Taiwan Semiconductor.

  • Maximum DC Reverse Voltage: 400V
  • Forward Voltage: 1.3V @ 15A
  • Diode Configuration: 1 pair of common cathode diodes
  • Average Rectified Current per Diode: 30A
  • Reverse Recovery Time: 50ns
  • Reverse Leakage Current: 10μs @ 400V
  • Mounting: Through-hole
  • Package: TO-247-3
  • Temperature Range: -55°C to 150°C
  • Product Status: Active
