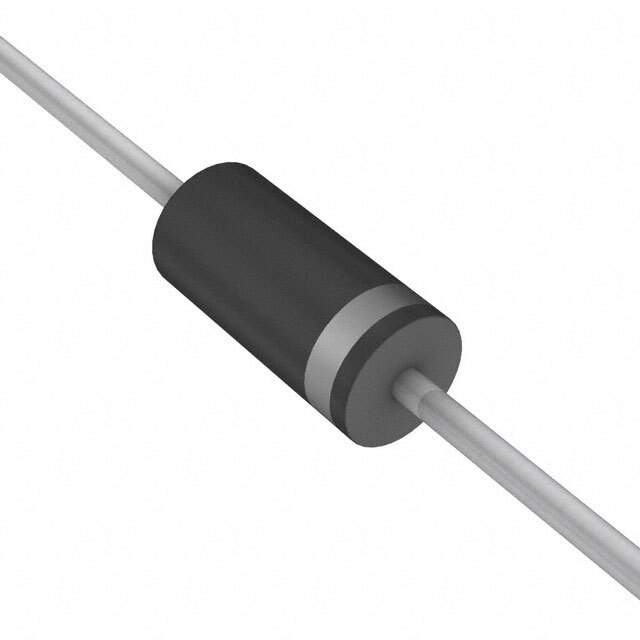

The SF24G A0 is a fast recovery rectifier diode manufactured by Taiwan Semiconductor. It is designed for use in applications requiring efficient and rapid switching, such as power supplies and inverters. This diode provides a good balance between forward voltage drop and reverse recovery time, making it suitable for a wide range of high-frequency rectification applications.

Applications:

• Switching Mode Power Supplies (SMPS)
• Freewheeling diode for inductive loads
• DC-DC converters
• Inverters
• Automotive applications

Features:

• Fast Recovery Time
• Low Forward Voltage Drop
• High Surge Current Capability
• High Reliability
• RoHS Compliant

Benefits:

• Improved efficiency in power conversion due to fast recovery time and low forward voltage drop
• Reduced switching losses and EMI (Electromagnetic Interference)
• Increased system reliability due to the high surge current capability
• Compact design due to efficient heat dissipation
• Environmentally friendly due to RoHS compliance

Technical Specifications:

The SF24G A0 has a repetitive peak reverse voltage (Vrrm) of 400V and an average forward current (If) of 2A. Its forward voltage drop (Vf) is typically around 1.3V at the rated current. The reverse recovery time (trr) is typically around 50 ns. It is commonly available in a DO-15 package. Detailed specifications can be found in the manufacturer's datasheet.

Important Note: Always refer to the manufacturer's datasheet for the most accurate and up-to-date specifications and application notes before using the SF24G A0 diode in any circuit design.
