Same model may have multiple batches, images only for reference.

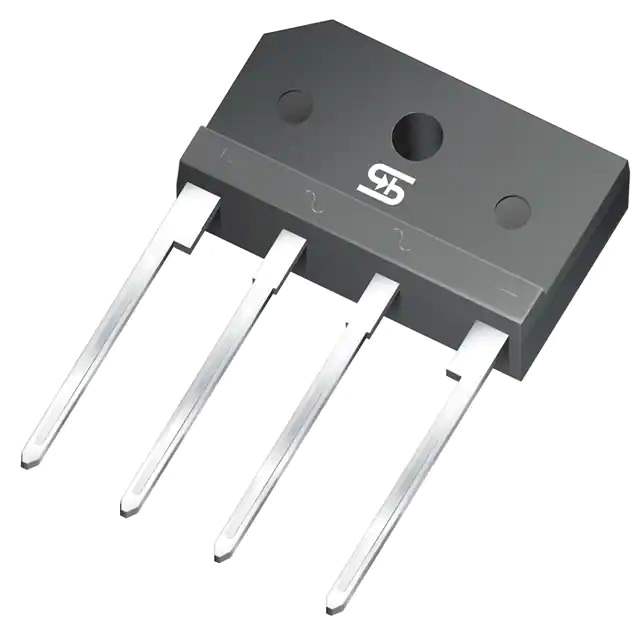

TS10K80 Real Image
Same model may have multiple batches, images only for reference.

TS10K80

Part No TS10K80
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 800V 10A TS4K
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 10 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 2 A
Current - Reverse Leakage @ Vr 10 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBL
Supplier Device Package TS4K
Base Product Number TS10K80
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 691444-TS10K80
Ultra Librarian 3D Model Ultra Librarian TS10K80 CAD Model

Description

The 691444-TS10K80 is a single-phase bridge rectifier diode designed for use in electronic circuits.

  • Maximum Forward Voltage: 1V @ 2A
  • Maximum Reverse Voltage: 800V
  • Mounting Type: Through-hole
  • Package: 4-SIP, GBL
  • Operating Temperature: -55°C to 150°C
  • Technology: Standard
  • Product Line: Taiwan Semiconductor
  • Current Rating: 10A
  • Package Quantity: 20 pieces
  • Package Type: Tube
  • Status: Active
  • REACH Compliance: Unaffected
  • Manufacturer: Taiwan Semiconductor
