Same model may have multiple batches, images only for reference.

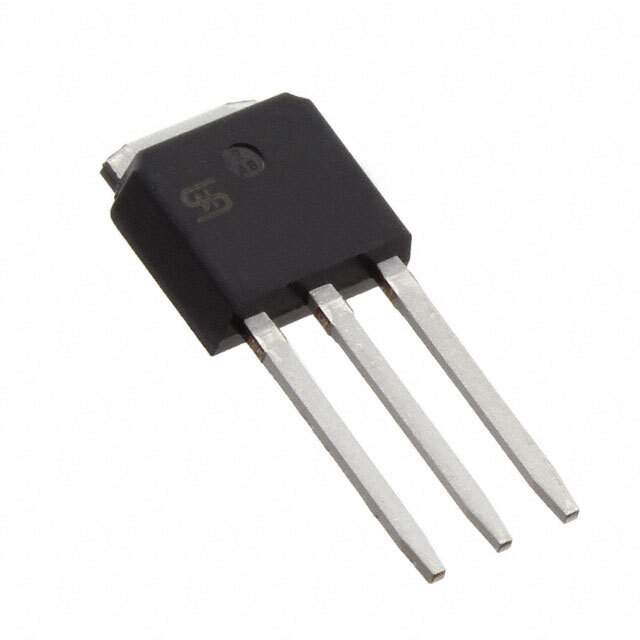

TSC5802DCHC5G Real Image
Same model may have multiple batches, images only for reference.

TSC5802DCHC5G

Part No TSC5802DCHC5G
Manufacturer Taiwan Semiconductor
Catalog Transistors (BJT) - Single
Description TRANSISTOR, NPN, 450V, 2.5A, 18A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Bipolar (BJT) Transistor NPN 450 V 2.5 A - 30 W Through Hole TO-251 (IPAK)
Manufacturer Taiwan Semiconductor
Package Tube
Operating Temperature Range 150°C (TJ)
Mounting Through Hole
Package TO-251-3 Short Leads, IPak, TO-251AA
Case / Package TO-251 (IPAK)
Family Name TSC5802
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Quantity per package 75
Popularity High
Supply and Demand Status Balance
Win Source Part Number 901283-TSC5802DCHC5G
Ultra Librarian 3D Model Ultra Librarian TSC5802DCHC5G CAD Model

Description

The TSC5802DCHC5G is a bipolar (BJT) transistor NPN 450 V 2.5 A - 30 W through-hole TO-251 (IPAK) from Taiwan Semiconductor.

  • Operating Temperature: 150°C
  • Series: TSC5802 family
  • Category: Discrete semiconductor products
  • Package: TO-251-3 Short Leads, IPak, TO-251AA
  • Mounting Type: Through the hole
  • Supply and Demand Status: Balanced
  • Pieces per Package: 75
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.29.0095
