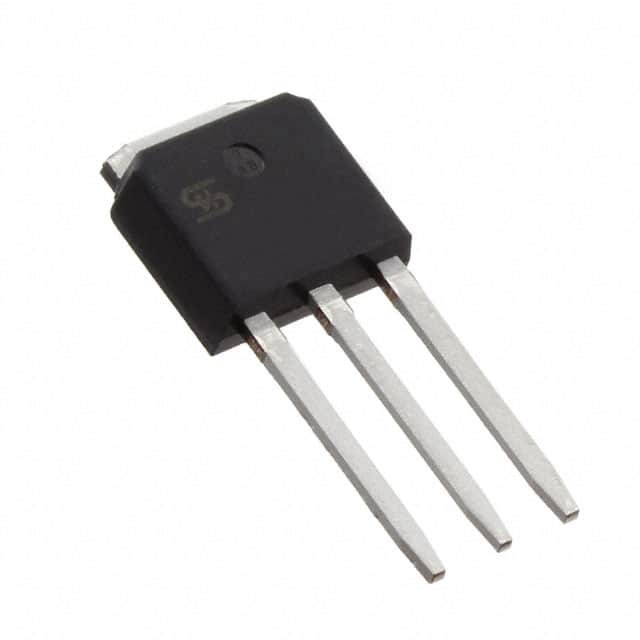

Same model may have multiple batches, images only for reference.
TSM4N70CH C5G
Same model may have multiple batches, images only for reference.

TSM4N70CH C5G

Part No TSM4N70CH C5G
Manufacturer Taiwan Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 700V 3.5A TO251
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features N-Channel 700 V 3.5A (Tc) 56W (Tc) Through Hole TO-251 (IPAK)
Manufacturer Taiwan Semiconductor
Package Tube
Part Status Obsolete
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Through Hole
Package TO-251-3 Short Leads, IPak, TO-251AA
Case / Package TO-251 (IPAK)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number TSM4N70CHC5G, TSM4N70CH C5G-ND
Quantity per package 75
Popularity High
Supply and Demand Status Balance
Win Source Part Number 901409-TSM4N70CH C5G
Ultra Librarian 3D Model Ultra Librarian TSM4N70CH C5G CAD Model

Description

The TSM4N70CH C5G is an N-channel 700 V 3.5A (Tc) 56W (Tc) through-hole TO-251 (IPAK) from Taiwan Semiconductor.

  • Channel Type: N-channel
  • Voltage: 700 V
  • Current: 3.5A (Tc)
  • Power: 56W (Tc)
  • Mounting: Through-hole
  • Package: TO-251 (IPAK)
  • Temperature Range: -55°C to 150°C
  • Series: TSM4N70CH
  • Package Type: TO-251-3 Short Leads, IPak, TO-251AA
  • Supply and Demand: Balanced
  • Pieces per Package: 75
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.29.0095
