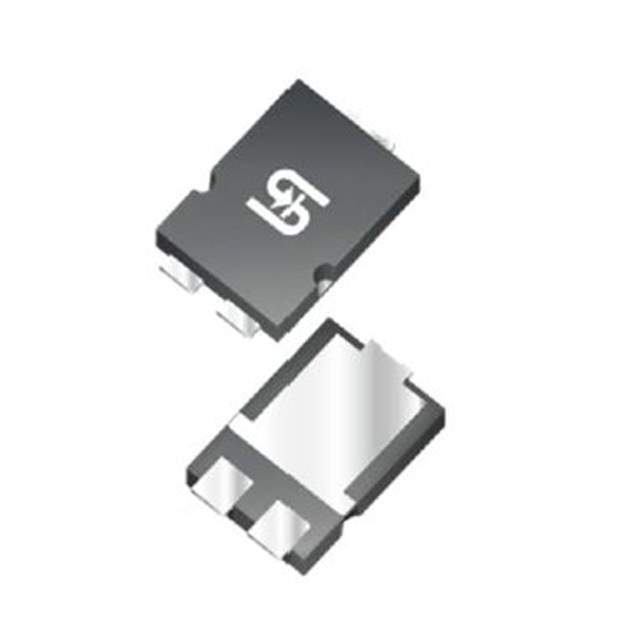

TSPB5H100S Real Image
Same model may have multiple batches, images only for reference.

TSPB5H100S

Part No TSPB5H100S
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 5A SMPC4.0 / Diode Schottky 100 V 5A Surface Mount SMPC4.0
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Taiwan Semiconductor Corporation
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 660 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 150 µA @ 100 V
Mounting SMD (SMT)
Package / Case TO-277, 3-PowerDFN
Supplier Device Package SMPC4.0
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number TSPB5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names TSPB5H100SS1GDKR-ND,TSPB5H100SS2G,TSPB5H100S S1GDKR,1801-TSPB5H100STR,TSPB5H100S S1GTR-ND,TSPB5H100S S1GCT-ND,TSPB5H100SS1GCT-ND,1801-TSPB5H100SDKR,TSPB5H100SS1GTR,TSPB5H100SS1GDKR,TSPB5H100S S1G,TSPB5H100S S2G,TSPB5H100SS2G-ND,TSPB5H100S S1GCT,TSPB5H100SS1GTR-ND,1801-TSPB5H100SCT,TSPB5H100S S1GTR,TSPB5H100S S1GDKR-ND,TSPB5H100SS1GCT
Standard Package 6,000
Win Source Part Number 1101521-TSPB5H100S
Ultra Librarian 3D Model Ultra Librarian TSPB5H100S CAD Model

Description

The TSPB5H100S is a Schottky diode rectifier manufactured by Taiwan Semiconductor Corporation.

  • Voltage Rating: 100V
  • Average Rectified Current: 5A
  • Maximum Forward Voltage Drop: 660mV @ 5A
  • Current Reverse Leakage: 150µA @ 100V
  • Operating Temperature Range: -55°C to 150°C
  • Package: TO-277, 3-PowerDFN
  • Application: Surface Mount
  • REACH: Unaffected
  • ECCN: EAR99
