Same model may have multiple batches, images only for reference.

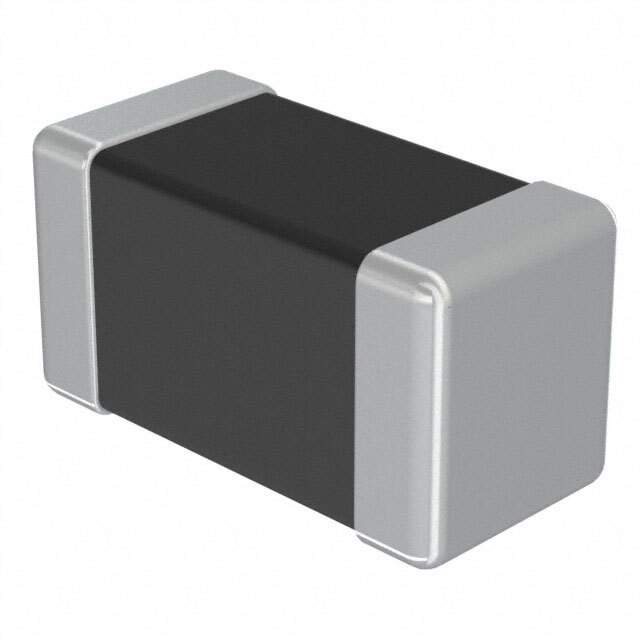

HKQ04022N4S-E Real Image
Same model may have multiple batches, images only for reference.

HKQ04022N4S-E

Part No HKQ04022N4S-E
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 2.4NH 260MA 300MOHM SM / 2.4 nH Unshielded Multilayer Inductor 260 mA 300mOhm Max 01005 (0402 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series HK, Q Type
Package Tape & Reel (TR)
Product Status Obsolete
Type Multilayer
Material - Core Ceramic
Inductance 2.4 nH
Tolerance ±0.3nH
Current Rating (Amps) 260 mA
Shielding Unshielded
DC Resistance (DCR) 300mOhm Max
Q @ Freq 8 @ 500MHz
Frequency - Self Resonant 8.3GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 500 MHz
Mounting SMD (SMT)
Package / Case 01005 (0402 Metric)
Supplier Device Package 01005 (0402 Metric)
Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max) 0.009" (0.22mm)
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 40,000
Win Source Part Number 1113727-HKQ04022N4S-E
Ultra Librarian 3D Model Ultra Librarian HKQ04022N4S-E CAD Model

Description

The HKQ04022N4S-E is an obsolete electronic component manufactured by Taiyo Yuden. The product is a reliable option for applications that require a low power consumption.

  • Status: Obsolete
  • Application: Low Power Consumption
  • Inductance: 2.4 nH
  • Tolerance: ±0.3nH
  • DC Resistance: 300mOhm Max
  • Current Rating: 260mA
