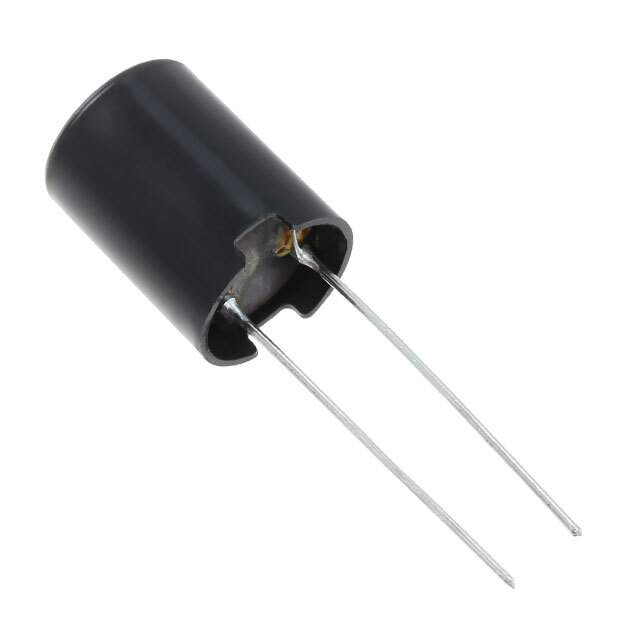

Same model may have multiple batches, images only for reference.

LHL10NB3R3M

Get a Quote

Part No	LHL10NB3R3M
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 4.2A 19 MOHM TH / 3.3 µH Unshielded Inductor 4.2 A 19mOhm Max Radial, Vertical Cylinder
Datasheet	LHL10NB3R3M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Taiyo Yuden
Series	LH, L Type
Package	Bulk
Product Status	Obsolete
Material - Core	Ferrite
Inductance	3.3 µH
Tolerance	±20%
Current Rating (Amps)	4.2 A
Shielding	Unshielded
DC Resistance (DCR)	19mOhm Max
Q @ Freq	50 @ 7.96MHz
Frequency - Self Resonant	46MHz
Temperature Range - Operating	-25°C ~ 105°C
Inductance Frequency - Test	7.96 MHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Size / Dimension	0.433" Dia (11.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Standard Package	50
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1340420-LHL10NB3R3M
Ultra Librarian 3D Model	Ultra Librarian LHL10NB3R3M CAD Model

Alternative Products

Description

The 1340420-LHL10NB3R3M is a fixed inductor from Taiyo Yuden's LH series.

Core Material: Ferrite
Inductance: 3.3 µH
Tolerance: ±20%
Q Factor: 50 @ 7.96MHz
Self-Resonant Frequency: 46MHz
DC Resistance: 19mOhm
Maximum Current Rating: 4.2A
Mounting Type: Through Hole
Package: Radial, Vertical Cylinder
Operating Temperature: -25°C to 105°C
Packaging: Bulk
Status: Obsolete
