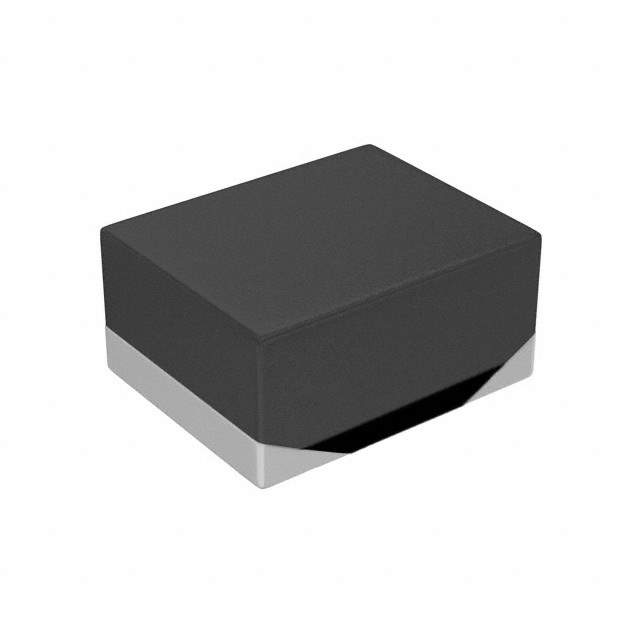

Same model may have multiple batches, images only for reference.

MAKK2016HR24M

Name: MAKK2016HR24M
Brand: Taiyo Yuden
SKU: 1169179
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	MAKK2016HR24M
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 240NH 4A 26 MOHM SMD / 240 nH Shielded Drum Core, Wirewound Inductor 4 A 26mOhm Max 0806 (2016 Metric)
Datasheet	MAKK2016HR24M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Taiyo Yuden
Series	MCOIL™, MA, H Type
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Metal
Inductance	240 nH
Tolerance	±20%
Current Rating (Amps)	4 A
Current - Saturation (Isat)	5.8A
Shielding	Shielded
DC Resistance (DCR)	26mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	2 MHz
Mounting	SMD (SMT)
Package / Case	0806 (2016 Metric)
Supplier Device Package	0806 (2016 Metric)
Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)	0.039" (1.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	587-4382-6,LQ MAKK2016HR24M,587-4382-1,587-4382-2
Standard Package	3,000
Win Source Part Number	1169179-MAKK2016HR24M
Ultra Librarian 3D Model	Ultra Librarian MAKK2016HR24M CAD Model

Alternative Products

Description

The Taiyo Yuden MAKK2016HR24M is a drum core, wirewound, shielded fixed inductor with an inductance of 240nH and a tolerance of ±20%.

Inductance: 240nH
Tolerance: ±20%
DC Resistance: 26mOhm max
Current Rating: 4A
Maximum Current Saturation: 5.8A
Operating Temperature: -40°C to 125°C
Package: Tape and Reel
Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
Mounting Type: SMD (SMT)
Application: Various electronic applications
