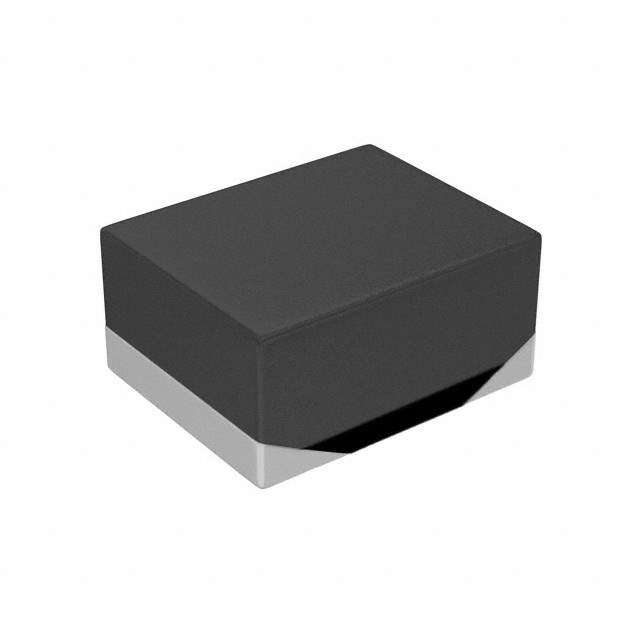

MAKK2016HR47M Real Image
Same model may have multiple batches, images only for reference.

MAKK2016HR47M

Part No MAKK2016HR47M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 470NH 3.3A 36 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Metal Composite
Inductance 470nH
Tolerance ±20%
Current Rating 3.3A
Current - Saturation 4.8A
DC Resistance (DCR) 36 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 2MHz
Mounting SMD (SMT)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 1065646-MAKK2016HR47M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian MAKK2016HR47M CAD Model

Description

The 1065646-MAKK2016HR47M is a wirewound inductor from Taiyo Yuden.

  • Current Rating: 3.3A
  • Inductance: 470nH
  • Material: Metal composite
  • Tolerance: ±20%
  • Height: 0.039"
  • Mounting Type: SMD (SMT)
  • Current Saturation: 4.8A
  • DC Resistance (DCR): 36 mOhm Max
  • Status: Active
  • Popularity: Medium
