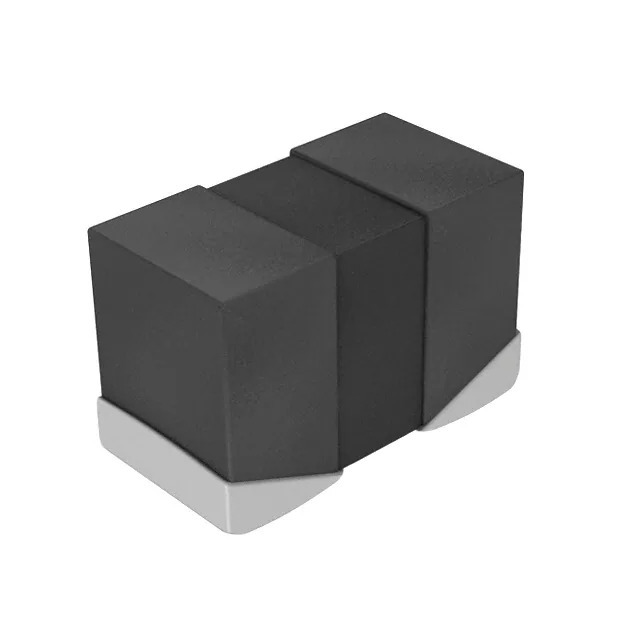

MBMK2520T3R3M

Name: MBMK2520T3R3M
Brand: Taiyo Yuden
SKU: 1370626
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MBMK2520T3R3M
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 970MA 260MOHM SM
Datasheet	MBMK2520T3R3M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Taiyo Yuden
Series	MCOIL™, MB
Package	Tape & Reel
Product Status	Not For New Designs
Type	Drum Core, Wirewound
Material - Core	Metal
Inductance	3.3 µH
Tolerance	±20%
Current Rating (Amps)	970 mA
Current - Saturation (Isat)	1.4A
Shielding	Shielded
DC Resistance (DCR)	260mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	1 MHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.047" (1.20mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1370626-MBMK2520T3R3M
Ultra Librarian 3D Model	Ultra Librarian MBMK2520T3R3M CAD Model

Alternative Products

Description

The Taiyo Yuden MCOIL™ MB Series MBMK2520T3R3M is a drum core wirewound inductor that offers high performance and reliability. MBMK2520T3R3M is a product of Taiyo Yuden.

Temperature Range: -40°C ~ 105°C
Tolerance: ±20%
Size / Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max): 0.047" (1.20mm)
Inductance: 3.3μH
Current Rating: 970mA
Shielding: Shielded
DC Resistance (DCR): 260mOhm Max
