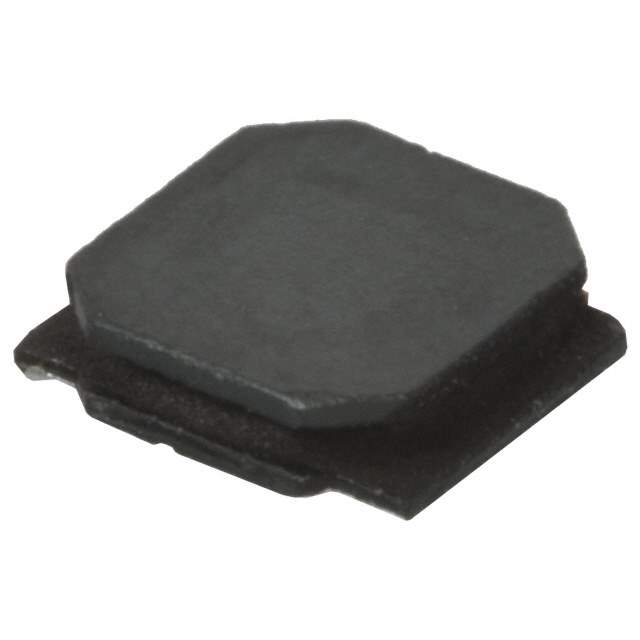

NR4012T2R2N Real Image
Same model may have multiple batches, images only for reference.

NR4012T2R2N

Part No NR4012T2R2N
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.2A 108 MOHM
Datasheet
NR4012T2R2N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±30%
Current Rating 1.2A
Current - Saturation 1.65A
DC Resistance (DCR) 108 mOhm Max
Frequency - Self Resonant 66MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 209301-NR4012T2R2N
Popularity Medium
Supply and Demand Status Limited
Quantity per package 4,500
Ultra Librarian 3D Model Ultra Librarian NR4012T2R2N CAD Model

Description

Taiyo Yuden NR4012T2R2N is a wirewound type inductor with a current rating of 1.2A and an inductance of 2.2μH.

  • Mounting: SMD (SMT)
  • Tolerance: ±30%
  • Material: Ferrite
  • DC Resistance (DCR): 108 mOhm Max
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
  • Package: 4,500 pieces
