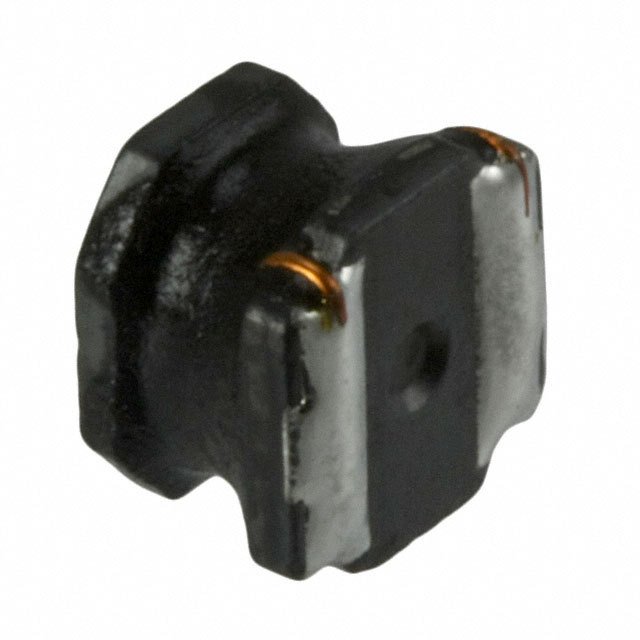

NR5040T4R7N Taiyo Yuden
Same model may have multiple batches, images only for reference.

NR5040T4R7N

Part No NR5040T4R7N
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 4.7UH 3.1A 37.7 MOHM
Datasheet
NR5040T4R7N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±30%
Current Rating 3.1A
Current - Saturation 3.3A
DC Resistance (DCR) 37.7 mOhm Max
Frequency - Self Resonant 28MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.161" (4.10mm)
Win Source Part Number 041946-NR5040T4R7N
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian NR5040T4R7N CAD Model

Description

The Taiyo Yuden 041946-NR5040T4R7N is a wirewound type inductor with a current rating of 3.1A and an inductance of 4.7μH.

  • Core Material: Ferrite
  • Tolerance: ±30%
  • DC Resistance (DCR): 37.7 mOhm Max
  • Frequency Self-Resonant: 28MHz
  • Temperature Range: -25°C to 120°C
  • Mounting: SMD (SMT)
  • Packaging: Reel - TR
  • Applications: Inductors, coils, and chokes
