Same model may have multiple batches, images only for reference.

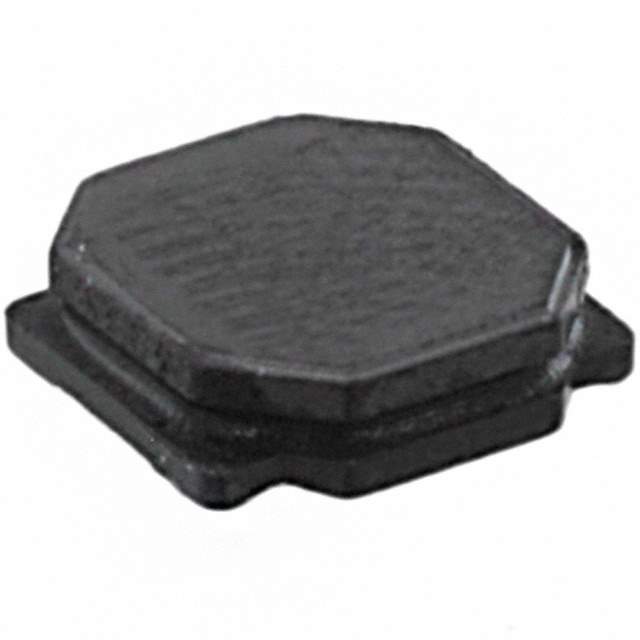

NR6020T1R5N Real Image
Same model may have multiple batches, images only for reference.

NR6020T1R5N

Part No NR6020T1R5N
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 1.5UH 3.2A 31.2 MOHM
Datasheet
NR6020T1R5N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 1.5μH
Tolerance ±30%
Current Rating 3.2A
Current - Saturation 4A
DC Resistance (DCR) 31.2 mOhm Max
Frequency - Self Resonant 93MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 004087-NR6020T1R5N
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian NR6020T1R5N CAD Model

Description

The Taiyo Yuden NR6020T1R5N is a wirewound inductor with a 1.5μH inductance and a maximum current rating of 3.2A. It has a height of 0.079" (2.00mm) and is designed for use in surface mount applications.

  • Tolerance: ±30%
  • Material: Ferrite
  • DC Resistance (DCR): 31.2 mOhm Max
  • Frequency - Self Resonant: 93MHz
  • Applications: Power supplies, DC-DC converters
