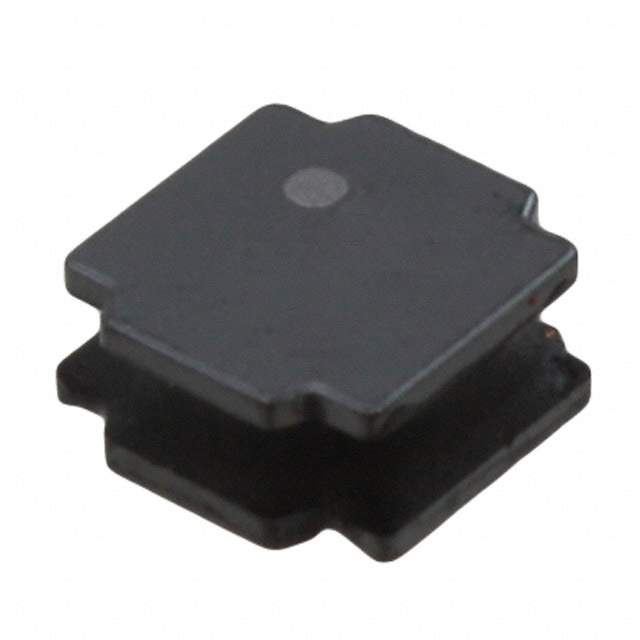

Same model may have multiple batches, images only for reference.

NR8040T0R9N

Name: NR8040T0R9N
Brand: Taiyo Yuden
SKU: 259324
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NR8040T0R9N
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 900NH 7.8A 7.8 MOHM
Datasheet	NR8040T0R9N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Taiyo Yuden
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	900nH
Tolerance	±30%
Current Rating	7.8A
Current - Saturation	11A
DC Resistance (DCR)	7.8 mOhm Max
Frequency - Self Resonant	85MHz
Temperature Range - Operating	-25°C to 120°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.157" (4.00mm)
Win Source Part Number	004103-NR8040T0R9N
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	1k pcs
Ultra Librarian 3D Model	Ultra Librarian NR8040T0R9N CAD Model

Alternative Products

Description

The NR8040T0R9N inductor from Taiyo Yuden is a wirewound type inductor with an inductance of 900nH and a current rating of 7.8A.

Inductance: 900nH
Current Rating: 7.8A
Core Material: Ferrite
Tolerance: ±30%
Seated Height: 0.157 inches (4.00mm)
Mounting Type: SMD (SMT)
DC Resistance (DCR): 7.8 mOhm Max
Temperature Range: -25°C to 120°C
Packaging: Reel of 1k pcs
Popularity: Medium
