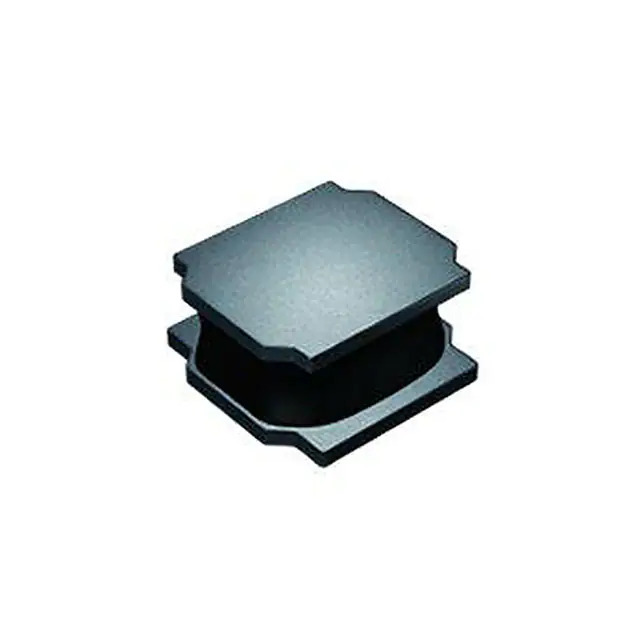

NRS2012T3R3MGJV Taiyo Yuden
Same model may have multiple batches, images only for reference.

NRS2012T3R3MGJV

Part No NRS2012T3R3MGJV
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1.02A 190MOHM SM
Datasheet
NRS2012T3R3MGJV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series NR, S Type
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 1.02 A
Current - Saturation (Isat) 1A
Shielding Shielded
DC Resistance (DCR) 190mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1370489-NRS2012T3R3MGJV
Ultra Librarian 3D Model Ultra Librarian NRS2012T3R3MGJV CAD Model

Description

The NR series of drum core, wirewound inductors from Taiyo Yuden are designed for use in various electronic applications.

  • Series: NR
  • Core Type: Drum Core, Wirewound
  • Package: Nonstandard
  • Mounting Type: Surface Mount
  • Core Material: Ferrite
  • Inductance: 3.3 µH
  • Inductance Tolerance: ±20%
  • DC Resistance (DCR): 190mOhm (Max)
  • Current Rating: 1.02 A (Max)
  • Shielding: Shielded
  • Operating Temperature: -40°C to 125°C
  • Lifecycle Status: Not for New Designs
