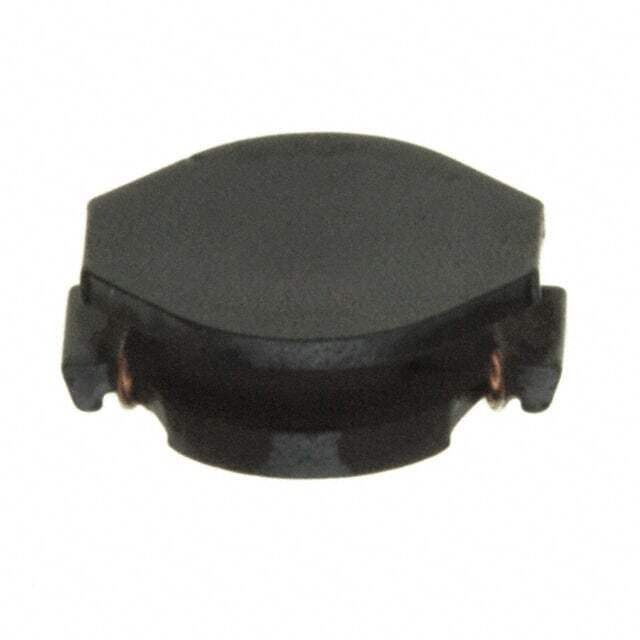

Same model may have multiple batches, images only for reference.

NRS6010T2R2MMGF

Name: NRS6010T2R2MMGF
Brand: Taiyo Yuden
SKU: 649439
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NRS6010T2R2MMGF
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 1.7A 132MOHM SMD
Datasheet	NRS6010T2R2MMGF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Taiyo Yuden
Series	NR, S Type
Package	Tape & Reel
Product Status	Not For New Designs
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	1.7 A
Current - Saturation (Isat)	1.9A
Shielding	Shielded
DC Resistance (DCR)	132mOhm Max
Frequency - Self Resonant	56MHz
Temperature Range - Operating	-25°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	2304 (6010 Metric)
Size / Dimension	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)	0.039" (1.00mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	649439-NRS6010T2R2MMGF
Ultra Librarian 3D Model	Ultra Librarian NRS6010T2R2MMGF CAD Model

Alternative Products

Description

The Taiyo Yuden NRS6010T2R2MMGF is a fixed inductor from the NR series by Taiyo Yuden.

Type: drum core, wirewound inductor with a shielded package
Inductance: 2.2 μH
Tolerance: ±20%
Size: 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height: 0.039" (1.00mm)
Packaging: tape and reel
Standard Package: 1,000 pcs
Operating Temperature Range: -25°C to 125°C
Current Rating: 1.7 A
DC Resistance: 132mOhm max
