Same model may have multiple batches, images only for reference.

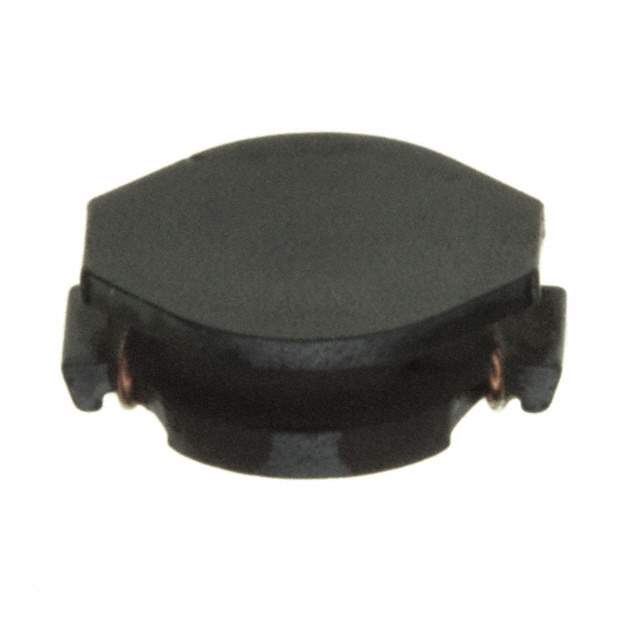

NRS6010T2R2MMGFV Real Image
Same model may have multiple batches, images only for reference.

NRS6010T2R2MMGFV

Part No NRS6010T2R2MMGFV
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.7A 132 MOHM / Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Ferrite 1.7A 0.132Ohm DCR 2424 Automotive T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Series NRS
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.7A
Current - Saturation 1.9A
Shielding Shielded
DC Resistance (DCR) 132 mOhm Max
Frequency - Self Resonant 56MHz
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Manufacturer Package 6060
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Win Source Part Number 790802-NRS6010T2R2MMGFV
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name NR
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian NRS6010T2R2MMGFV CAD Model

Description

The Taiyo Yuden NRS series wirewound inductor is a high-performance inductor that is designed to provide reliable and efficient power supply solutions.

  • Inductance: 2.2μH
  • Current Rating: 1.7A
  • Operating Temperature: -40°C ~ 125°C
  • Tolerance: ±20%
  • Core: Ferrite
  • Shielded: Yes
  • Package: Nonstandard
  • Mounting Type: SMD
  • AEC-Q200 Rated: Yes
  • Current Saturation: 1.9A
  • Self-Resonant Frequency: 56MHz
  • Test Frequency: 100kHz
