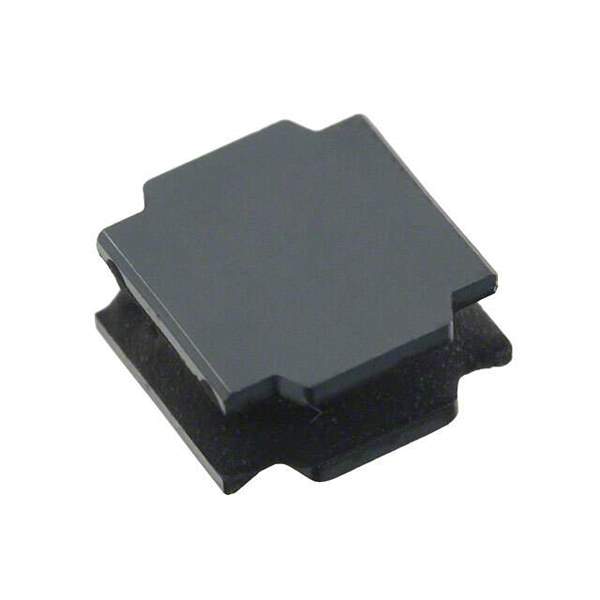

NRS8040T0R9NJGJ Real Image
Same model may have multiple batches, images only for reference.

NRS8040T0R9NJGJ

Part No NRS8040T0R9NJGJ
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description SMD Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Series NRS
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 900nH
Tolerance ±30%
Current Rating 7.8A
Current - Saturation 13A
Shielding Shielded
DC Resistance (DCR) 7.8 mOhm Max
Frequency - Self Resonant 85MHz
Operating Temperature Range -25°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Maximum) 0.157" (4.00mm)
Win Source Part Number 1232150-NRS8040T0R9NJGJ
Manufacturer Homepage www.t-yuden.com/
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian NRS8040T0R9NJGJ CAD Model

Description

The Taiyo Yuden NRS8040T0R9NJGJ is a high-performance wirewound inductor with a shielding feature that provides high resistance to electromagnetic interference.

  • Manufacturer: Taiyo Yuden
  • Current Rating: 7.8A
  • Inductance: 900nH
  • Operating Temperature: -25°C to 125°C
  • DC Resistance: 7.8 mOhm Max
  • Popularity: Medium
  • Supply and Demand: Balanced
