Same model may have multiple batches, images only for reference.

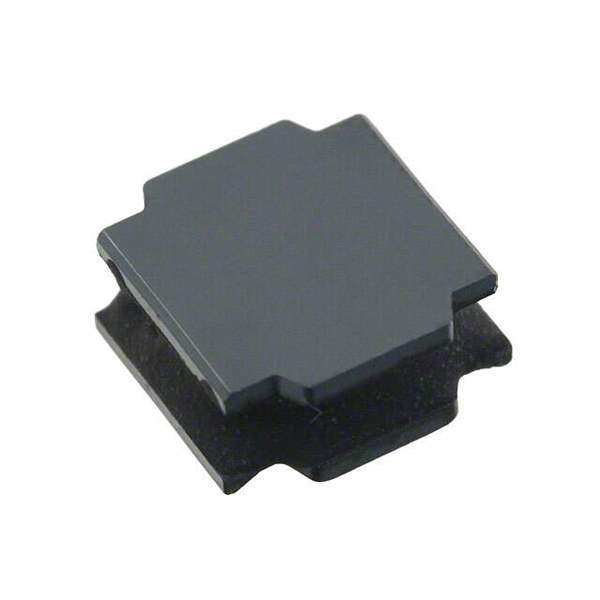

NRS8040T4R7NJGJV Real Image
Same model may have multiple batches, images only for reference.

NRS8040T4R7NJGJV

Part No NRS8040T4R7NJGJV
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 4.7UH 4.1A 23.4MOHM SM  /  4.7 µH Shielded Drum Core, Wirewound Inductor 4.1 A 23.4mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series NR, S Type
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±30%
Current Rating (Amps) 4.1 A
Current - Saturation (Isat) 5.4A
Shielding Shielded
DC Resistance (DCR) 23.4mOhm Max
Frequency - Self Resonant 30MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.165" (4.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names LM NRS8040T 4R7NJGJV,587-3657-6,587-3657-1,587-3657-2
Standard Package 1,000
Win Source Part Number 1204534-NRS8040T4R7NJGJV
Ultra Librarian 3D Model Ultra Librarian NRS8040T4R7NJGJV CAD Model

Description

The NR, S Type series from Taiyo Yuden presents a tape & reel packaged fixed inductor with shielded shielding. This drum core, wirewound inductor has an inductance of 4.7μH, and its height-seated (max) is 0.165" (4.20mm).

  • Shielding: Shielded
  • Core: Drum Core, Wirewound
  • Inductance: 4.7μH
  • Height-Seated (Max): 0.165" (4.20mm)
  • Tolerance: ±30%
  • AEC-Q200: Yes
  • Material - Core: Ferrite
  • Frequency - Self-Resonant: 30MHz
  • Package/Case: Nonstandard
  • Supplier Device Package: Not Specified
  • Temperature Range - Operating: -40°C ~ 125°C
  • Inductance Frequency - Test: 100kHz
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
  • Current Rating (Amps): 4.1A
  • HTSUS: 8504.50.4000
  • Other Names: LM NRS8040T 4R7NJGJV, 587-3657-6, 587-3657-1, 587-3657-2
