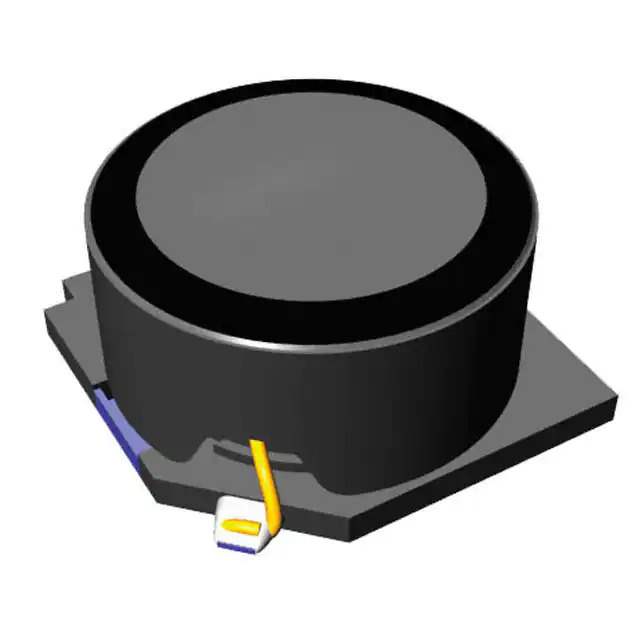

NS12555T221MN

Name: NS12555T221MN
Brand: Taiyo Yuden
SKU: 649506
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NS12555T221MN
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 220UH 1.18A 324MOHM SM
Datasheet	NS12555T221MN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Taiyo Yuden
Series	NS
Package	Tape & Reel
Product Status	Not For New Designs
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	220 µH
Tolerance	±20%
Current Rating (Amps)	1.18 A
Current - Saturation (Isat)	1A
Shielding	Shielded
DC Resistance (DCR)	324mOhm Max
Frequency - Self Resonant	4.4MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.230" (5.85mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	649506-NS12555T221MN
Ultra Librarian 3D Model	Ultra Librarian NS12555T221MN CAD Model

Alternative Products

Description

The 649506-NS12555T221MN is a drum core, wirewound inductor from Taiyo Yuden's NS series.

Inductor Type: Drum Core, Wirewound, Shielded
Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
Inductance: 220 µH
Height: 0.230" (5.85mm)
Tolerance: ±20%
Mounting Type: Surface Mount
Package: Nonstandard
DC Resistance (DCR): 324mOhm max
Operating Temperature Range: -40°C to 125°C
Lifecycle Status: Not for new designs
Current Rating: 1.18 A
Core Material: Ferrite
Self-Resonant Frequency: 4.4MHz
